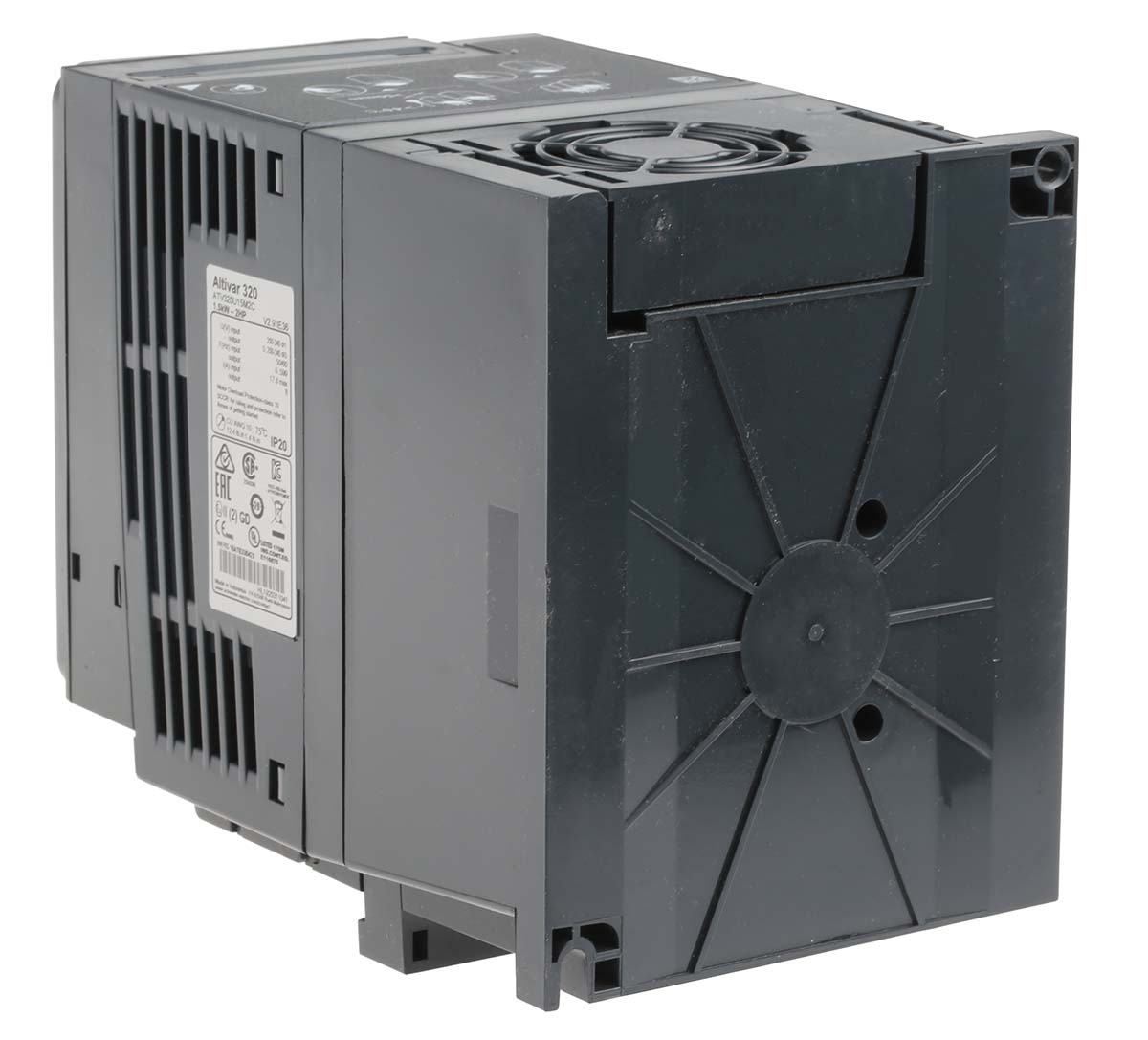

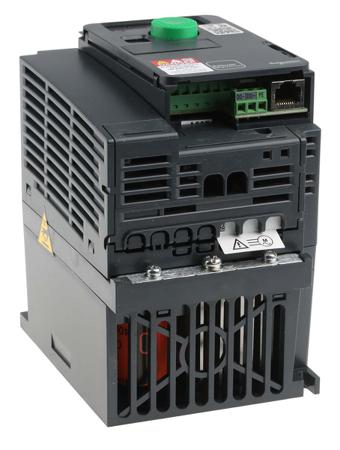

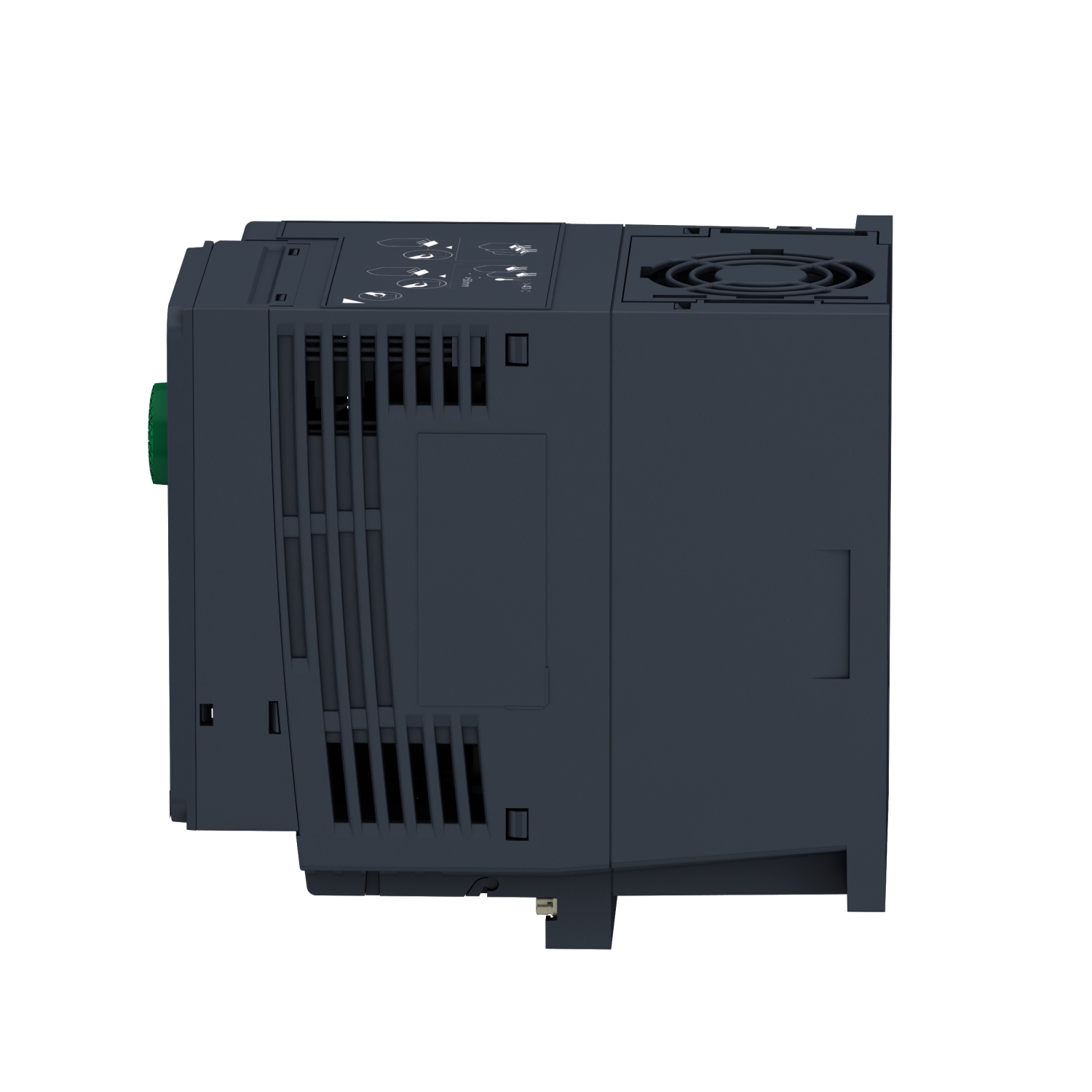

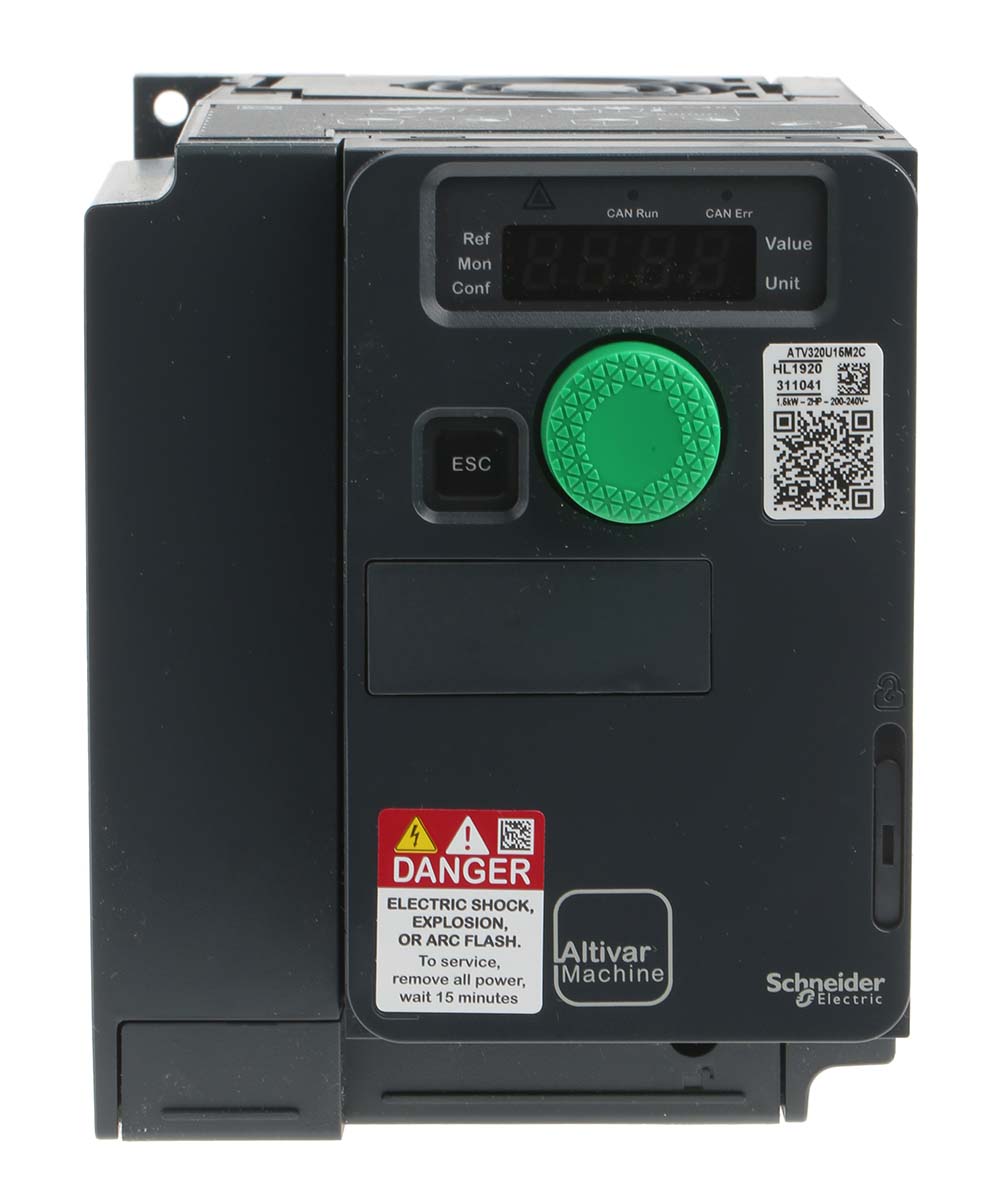

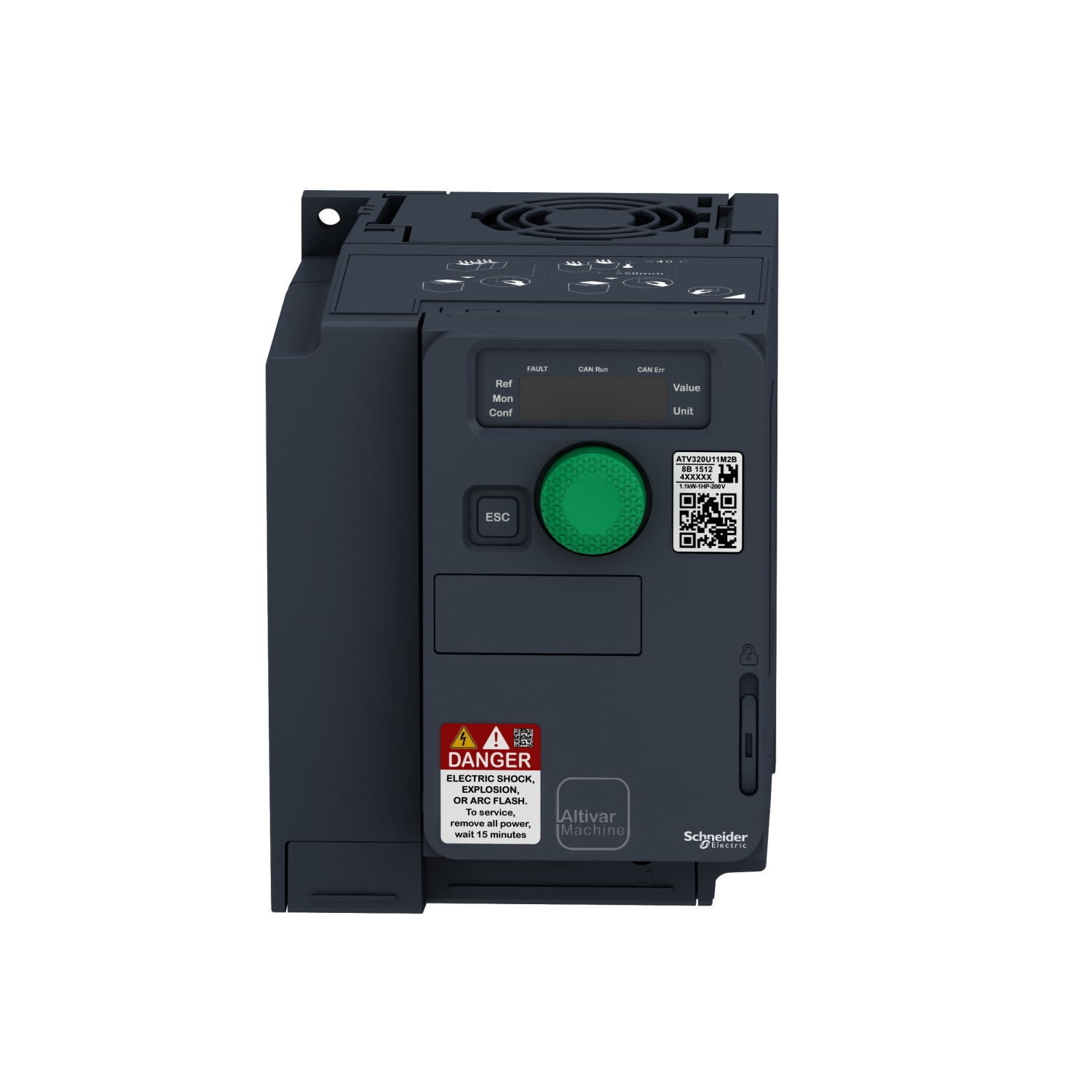

Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC Filter

ATV320U15M2C Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC Filter
ATV320U15M2C
ATV320U15M2C
ET16747408
ET16747408
Inverter Drives
Inverter Drives
ATV320U15M2C Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC FilterSchneider Electric
ATV320U15M2C Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC FilterSchneider Electric
ATV320U15M2C Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC Filter
ATV320U15M2C
ATV320U15M2C
ATV320U15M2C Schneider Electric Variable Speed Drive, 1-Phase In, 0.1 → 599Hz Out 1.5 kW, 230 V ac with EMC Filter
Schneider Electric

Product Information

Current Rating:
17.8 A @ 200 V ac
Supply Voltage:
230 V ac
For Use With:
Single Phase Asynchronous & Synchronous Motors
Function:
Motor Control
Better World Claim:
Saves energy
Standards Met:
CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1, EN ISO 13849-2, IEC 60204-1, IEC 6100, IEC 61158, IEC 61508, IEC 61784, IEC/EN 60721, NOM 117, RCM, UL
Drive Type:
Variable Frequency
Overall Length:
105mm
Interface:
RS 485
Overall Depth:
142mm
IP Rating:
IP20
STO:
Yes
Phase:
1
Output Frequency:
0.1 → 599Hz
Special Features:
Enhanced Automation Capabilities, Even at Low Speed & Dynamic Accuracy for Start/Stop Application, Open-Loop Motor Control Combined, Variable Speed Drive Improves Machine Effectiveness
Better World Verification:
Green Premium
Better World Product:
Yes
Mounting Type:
DIN Rail
Series:
Altivar
Overall Width:
158mm
Filter Included:
Yes
Control Panel:
Yes
Power Rating:
1.5 kW
Field Bus Communication Type:
Profibus
Checking for live stock

Altivar ATV320 Series The Altivar Machine ATV320 variable speed drives are simple, yet enhanced machines. They have been designed for original equipment manufacturers and meet simple and advanced applications requirements for three phase synchronous and asynchronous motors, from 0.18 to 15 kW. This type of VFD is the perfect solution to help you improve you machines effectiveness across a variety of applications. Features and Benefits • Enhanced automation capabilities through open loop motor control being combined with simplicity for asynchronous and synchronous motors – this also applies at a low speed, dynamic accuracy for start/stop applications. • Advanced connectivity with automation architectures such as EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet. • Featuring functions such as ATVLogic which bring application expertise and flexibility to the machines. • The Altivar Machine ATV320 variable speed drives carry on their predecessors’ tradition of robustness and reliability. • To maximise the machine operation time, especially as the production changes the safety diagnostics and operation, system integration and network configuration can be achieved in a timely manner. • The ATV320 has been engineered cost effective, easy installation for a number of machine layouts and for the placement for inside in places such as cabinets and machine frames. • Due to the robust, strong and reliable design these VFD’s and also having IEC 60721-3-3 class 3C3 coated printed circuit boards the variable frequency drives can extend the machine availability in harsh conditions. • This series have different mounting options, depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side) • Comprehensive embedded safety accounts for the machine having an additional safety torque OFF, four functions of full sa...

pdf icon
Altivar ATV320 Catalogue(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Datasheet ATV320U15M2C(Technical Reference)
pdf icon
ATV312 32 to ATV320 X-Ref(Technical Reference)
pdf icon
Green Premium Ecolabel(Technical Reference)
pdf icon
Instruction Sheet - ATV320 Series(Technical Reference)
