Current Rating:
2.4 A
Supply Voltage:
230 V ac
For Use With:
AC Motors
Function:
Motor Control
Standards Met:
CE, C-Tick, cUL, EMC Directive 2004/108/EC, Environmental System ISO 14001, GOST R, Low Voltage Directive 2006/95/EC, Machinery Directive 2006/42/EC, Quality Assurance System ISO 9001, UL
Drive Type:
Vector Control
Overall Length:
239mm
Interface:
RS232, RS485
Overall Depth:
187mm
IP Rating:
IP20
STO:
No
Phase:
1
Output Frequency:
0 → 600Hz
Special Features:
Flash Drop Tool, Programmable Control Connection, Safe Torque-Off Function, Sequence Programming, Serial and Ethernet Communication, Speed Compensated Stop
Mounting Type:
Panel Mount
Series:
ACS355
Overall Width:
70mm
Filter Included:
Yes
Control Panel:
No
Power Rating:
0.37 kW
Field Bus Communication Type:
CAN, LON, MODBUS, PROFIBUS, PROFINET IO, TCP/IP

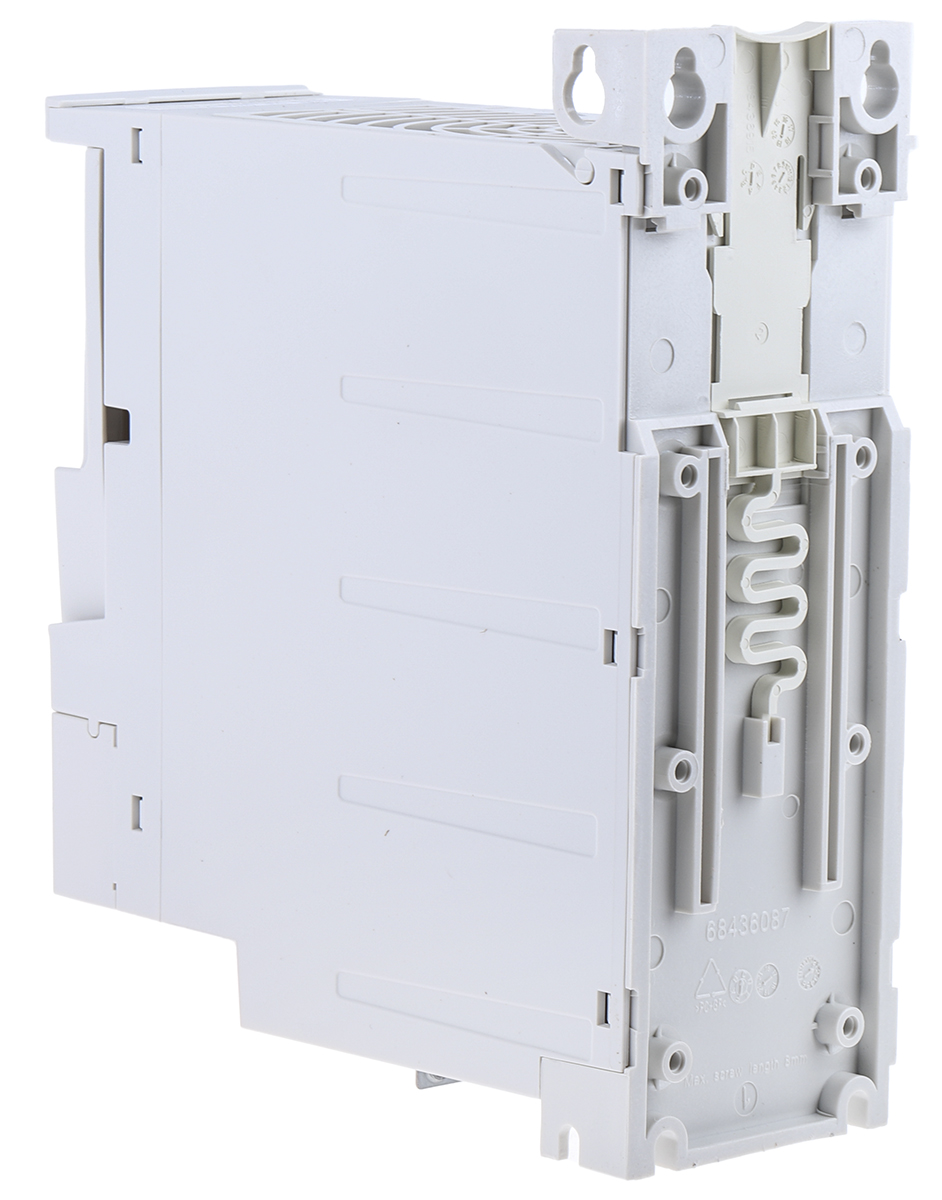

This is ACS355 Inverter Drive 0.37 kW with EMC Filter 1-Phase In 200 → 240 V 2.4 A 0 → 600Hz Out IP20 manufactured by ABB. The manufacturer part number is ACS355-01E-02A4-2. The product has a current rating of 2.4 a. Features 230 v ac supply voltage. The product is highly suitable for ac motors. It performs basic function of motor control. The product complies with all safety standards, such as ce, c-tick, cul, emc directive 2004/108/ec, environmental system iso 14001, gost r, low voltage directive 2006/95/ec, machinery directive 2006/42/ec, quality assurance system iso 9001, ul. The product features a vector control drive. It has an overall length of 239mm. A bespoke product is rs232, rs485 interface. Similarly, the product has 187mm of overall depth. It is IP rated with ip20. In has an STO no . Concerning phase options, it features 1 configuration. This product has an output frequency range of 0 → 600hz. The product also provides special features, such as flash drop tool, programmable control connection, safe torque-off function, sequence programming, serial and ethernet communication, speed compensated stop. The product is available in panel mount configuration. The product acs355, is a highly preferred choice for users. It has an overall width of 70mm. It includes a filter yes . It includes a control panel no . Feature 0.37 kw of power rating. It has a/an can, lon, modbus, profibus, profinet io, tcp/ip type bus communication .
