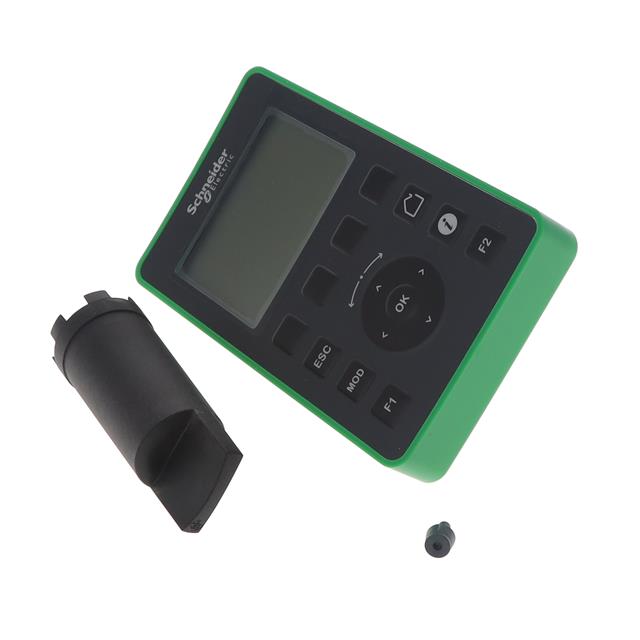

Schneider Electric Modicon M221 Backlit STN LCD HMI Panel, 1 port, 5 V dc Supply, 80 x 63 x 126 mm

Enrgtech Part No: ET16748545
|
Manufacturer Part No:
TMH2GDB
|
Manufacturer: Schneider Electric

TMH2GDB Schneider Electric Modicon M221 Backlit STN LCD HMI Panel, 1 port, 5 V dc Supply, 80 x 63 x 126 mm

Product Information

Better World Verification:

Green Premium

Display Type:

STN LCD

Number of Ports:

Display Colour:

Monochrome

Dimensions:

80 x 20 x 126 mm

Manufacturer Series:

Modicon M221

IP Rating:

IP20, IP65

Kit Included:

Yes

Port Type:

RJ45 (RS485)

Length:

80mm

Display Resolution:

240 x 160

Width:

63mm

Checking for live stock

The Schneider Electric TMH2GDB is a compact, high‑performance HMI display designed for the Modicon M221 series PLCs. Featuring a crisp monochrome backlit STN LCD with 240×160 pixel clarity and a small 80×63×126 mm footprint, this panel delivers intuitive operator control in tight industrial spaces. Engineered for the UK market with CE and RoHS compliance and IP20/IP65 protection, it is ideal for rugged industrial environments. Power and RS‑485 communication are delivered over a single RJ‑45 connection, offering quick, reliable setup in manufacturing, building automation, and process control applications.

Unique Features and Benefits of the Schneider Electric Backlit STN LCD HMI Panel, 1 port

Compact panel mount design for space‑constrained control panels.
Clear 240×160 pixel monochrome display with backlight for visibility in any light condition.
Single RJ‑45 port for both power (5 V DC) and RS‑485 communication.
IP20/IP65 front face ensures dust and splash protection.
Four configurable soft keys plus navigation buttons for flexible user control.
Durable across –15 °C to +50 °C and up to 95% humidity (non‑condensing).

Versatility in Applications

Interface module for Modicon M221 PLC‑based automation systems
Machine operator control in manufacturing and packaging lines
Remote process monitoring in HVAC, utilities, and mechanical systems
Compact control consoles for building, facility, or energy management
OEM control panel builds requiring rugged, easy‑to‑use HMI displays

Guide - TMH2GDB(Technical Reference)

Product Environmental Profile(Technical Reference)

Datasheet_TMH2GDB(Technical Reference)

Instruction Sheet - TMH2GDB(Technical Reference)

TMH2GDB(Datasheets)
