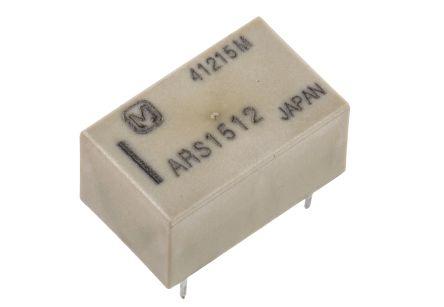

SPDT PCB Mount, HF Relay, 3GHz 12V dc
Product Information
Contact Resistance:
100 m
Dimensions:
14 x 8.6 x 7.2mm
Coil Voltage:
12V dc
Coil Resistance:
720
Life:
1000000 (Electrical) cycles
VSWR Voltage Standing Wave Ratio:
1.4 @ 3 GHz
Switching Voltage:
30V
Coil Power:
200mW
Impedance:
50Ω
Maximum Operating Temperature:
+70°C
Operating Temperature Range:
-40 → +70°C
Isolation:
35 dB @ 3 GHz
Latching:
Yes
Contact Configuration:
SPDT
Depth:
8.6mm
Insertion Loss:
0.35 dB @ 3 GHz
Mounting Type:
PCB Mount
Maximum Coil Frequency:
3GHz
Operating Time Including Bounce:
10ms
Length:
14mm
Height:
7.2mm
Minimum Operating Temperature:
-40°C
Contact Material:
Gold Plated
Checking for live stock
FAQs
Yes. You can also search ARS1512 on website for other similar products.
We accept all major payment methods for all products including ET16750267. Please check your shopping cart at the time of order.
You can order Panasonic brand products with ARS1512 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in High Frequency & RF Relays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of SPDT PCB Mount, HF Relay, 3GHz 12V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT PCB Mount, HF Relay, 3GHz 12V dc.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16750267 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16750267.
Yes. We ship ARS1512 Internationally to many countries around the world.
This is SPDT PCB Mount HF Relay 3GHz 12V dc manufactured by Panasonic. The manufacturer part number is ARS1512. It features a 100 m<ohm/> contact resistance. The given dimensions of the product include 14 x 8.6 x 7.2mm. The coil voltage of the product is 12v dc. It holds up to 720 <ohm/> coil resistance. It is capable of doing 1000000 (electrical) cycles in a lifetime . Additionally, it has 1.4 @ 3 ghz VSWR voltage standing wave ratio . The product's switching voltage is 30v. Robust coil power of 200mw. It has an impedance value of 50ω. It has a maximum operating temperature of +70°c. The product has -40 → +70°c of operating temperature range. Features a 35 db @ 3 ghz isolation. Latching Options - yes. The contact is equipped with spdt configuration. The product comes in 8.6mm depth. Allows 0.35 db @ 3 ghz of insertion loss. The product is available in pcb mount configuration. With about 3ghz maximum coil frequency . Moreover, the product offers a 10ms operating time including bounce . Its accurate length is 14mm. In addition, the height is 7.2mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy gold plated materials.
