H-A Series 32 Way Male 10A Bulkhead/Panel Mount Socket Kit
Product Information
Current Rating:
10A
Voltage Rating:
440 V
Gender:
Male
Body Orientation:
Top Entry
Pole Format:
32P+E
Thread Size:
PG29
Series:
H-A
Number of Contacts:
32
Type:
Plug Kit
Checking for live stock
FAQs
Yes. You can also search 10530000+10540000+10583000+129 on website for other similar products.
We accept all major payment methods for all products including ET16788861. Please check your shopping cart at the time of order.
You can order Epic Contact brand products with 10530000+10540000+10583000+129 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Heavy Duty Power Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of H-A Series 32 Way Male 10A Bulkhead/Panel Mount Socket Kit. You can also check on our website or by contacting our customer support team for further order details on H-A Series 32 Way Male 10A Bulkhead/Panel Mount Socket Kit.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16788861 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Epic Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16788861.
Yes. We ship 10530000+10540000+10583000+129 Internationally to many countries around the world.

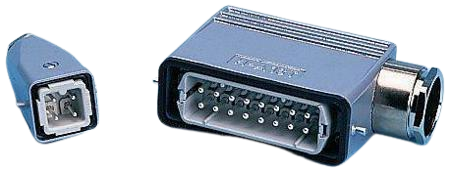

H-A Cable Plugs - Metal Body Approvals UL listed; CSA certified; SEV Metal Plug Kits Screw terminals with wire protection leaves accept cables up to 2·5mm². Contacts are hard silver plated copper alloy Plug and socket inserts are interchangeable allowing appliance inlet (fixed plug) and free cable mounting socket arrangements. A separate earth connection is made through all inserts Cable mounting types include compression glands which will seal circular cables to IP54 and IP65 protection (see technical specification for details) Although of compact physical size this range is also rated to 250Vac working for group C (Industrial) Dimensions: 3 and 4-way H-A Series connectors are type tested to 10A, 440Vac, and are available in kit form, and as individual components. 3 and 4-way versions are available in plastic and metal-bodied versions, with 10 to 48-way only with metal bodies. Dimensions: 10 and 16 way Cable plug, side entry Surface mtg socket Panel mtg socket Cable plug, top entry Dimensions: 32//48 way - gland size PG29 Cable plug, side entry Cable plug, top entry Surface mtg socket (32 way only) Panel mtg socket Working voltage (plastic and 10/16/32/48 way metal body) 440Vac 3 and 4 way 250Vac Test voltage 2kVac Contact resistance with screw termination Working current (A) at ambient Temperature (Tamb) 2·5mm2 wire Tamb 3//4 way 10 way 16 way 32 way 48 way 40°C 10A 10A 10A 10A 10A 60°C 10A 10A 10A 10A 9A 80°C 10A 9A 7·5A 6A 4A Temperature range -40°C to +125°C Insulation group VDE 0110 group B Environmental rating: 3//4 way IP54 10,16,32 and 48 way IP65 Dimensions Hood Size PG Gland Size 3 and 4 way PG11 10 way PG16 16 way PG21 32 way PG29 Dimensions (mm) A B C D E F G H Gland size 10 way 53 63 76 48 64 76 70 81 PG16 16 way 58 79 92 64 80 92 86 96 P...
