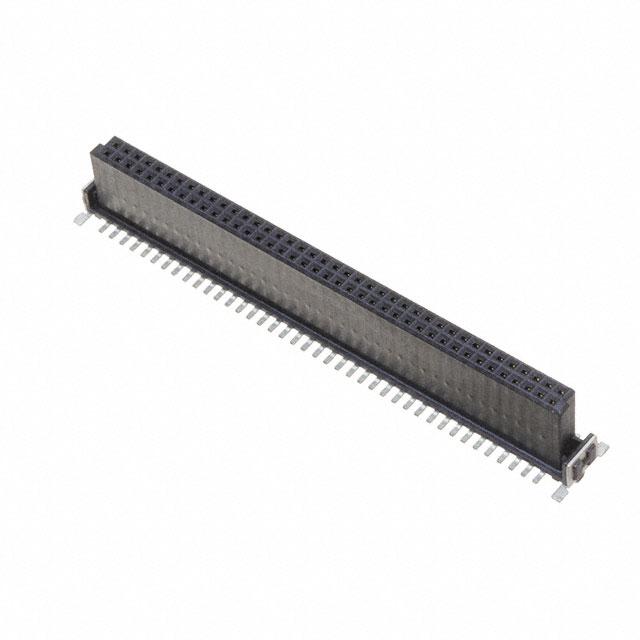

Omron Electronics Inc-EMC Div XH5B-8015-5N

XH5B-8015-5N Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
80
Contact Length - Post:
-
Insulation Height:
0.356" (9.05mm)
Voltage Rating:
100VAC
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
10.8mm, 12.3mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Socket
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
1A
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
XH5-N
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
XH5B
ECCN:
EAR99
Checking for live stock

This is manufactured by Omron Electronics Inc-EMC Div. The manufacturer part number is XH5B-8015-5N. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 80. 0.356" (9.05mm) of insulation height. Moreover, the product has a nominal 100vac voltage rating. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 10.8mm, 12.3mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. socket Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 1a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product xh5-n, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to xh5b, a base product number of the product. The product is designated with the ear99 code number.
