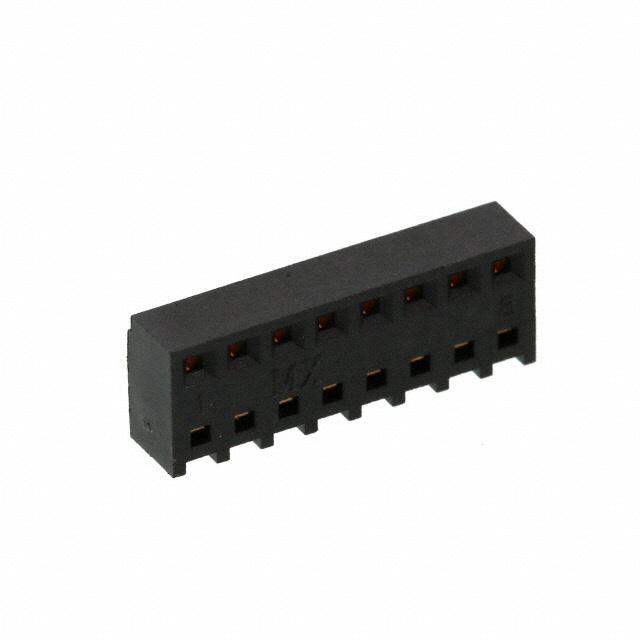

Molex 0448120026
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
8
Insulation Height:
0.177" (4.50mm)
Voltage Rating:
250VAC, 176VDC
REACH Status:
REACH Unaffected
edacadModel:
0448120026 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/698116
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.136" (3.46mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
KK254, 44812
Contact Type:
Female Socket
Contact Material:
Brass Alloy
Base Product Number:
044812
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0448120026 on website for other similar products.
We accept all major payment methods for all products including ET18345448. Please check your shopping cart at the time of order.
You can order Molex brand products with 0448120026 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0448120026. You can also check on our website or by contacting our customer support team for further order details on Molex 0448120026.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18345448 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18345448.
Yes. We ship 0448120026 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0448120026. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 8. 0.177" (4.50mm) of insulation height. Moreover, the product has a nominal 250vac, 176vdc voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa), nylon, glass filled insulation material. It is shipped in tray package . receptacle, bottom or top entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.136" (3.46mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product kk254, 44812, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy brass alloy materials. Moreover, it corresponds to 044812, a base product number of the product. The product is designated with the ear99 code number.
