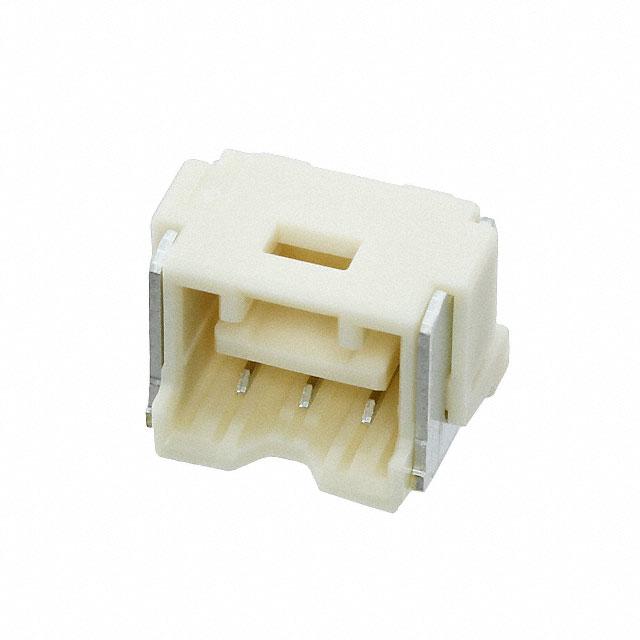

Molex 5024940370

5024940370 Molex
5024940370
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
3
Insulation Height:
0.270" (6.86mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
edacadModel:
5024940370 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6575360
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
21 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
CLIK-Mate 502494
Packaging:
Tape & Reel (TR)
Insulation Material:
Resin
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
502494
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5024940370. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 3. 0.270" (6.86mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 21 weeks standard lead time. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount, right angle configuration. The product clik-mate 502494, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust resin insulation material. It has typical contact type of forked. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 502494, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
502494 Series Cancel Equipment Transfer 16/Feb/2024(PCN Assembly/Origin)
pdf icon
2.0mm PITCH W/B CONN. SINGLE Series User Manual(Manuals)
pdf icon
5024yyyy0 Alternative Material 29/Oct/2021(PCN Design/Specification)
pdf icon
CLIK-Mate Datasheet(Datasheets)
pdf icon
2.0mm PITCH W/B CONN. SINGLE Series Application Spec(Datasheets)
pdf icon
502494-0370.pdf(3D Drawings)
pdf icon
5024940370 Drawing(Product Drawings)
