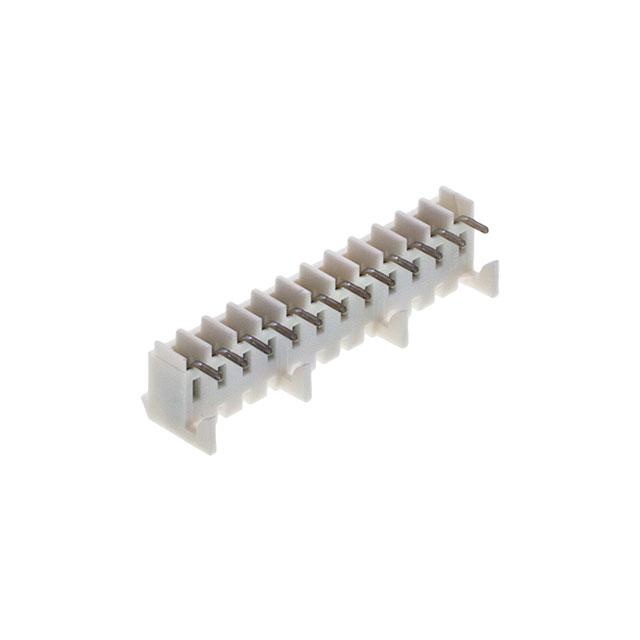

Molex 0009482121
Product Information
Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 80°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
12
Contact Length - Post:
0.145" (3.68mm)
Insulation Height:
0.308" (7.82mm)
Voltage Rating:
600V
REACH Status:
REACH Unaffected
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyester
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
19 Weeks
Current Rating (Amps):
4.5A
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
Board Hooks
Mounting Type:
Board Edge, Through Hole, Right Angle
Series:
KK396, 41815
Contact Type:
Female Socket
Contact Material:
Brass
Base Product Number:
000948
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 0009482121 on website for other similar products.
We accept all major payment methods for all products including ET17536819. Please check your shopping cart at the time of order.
You can order Molex brand products with 0009482121 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 0009482121. You can also check on our website or by contacting our customer support team for further order details on Molex 0009482121.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17536819 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17536819.
Yes. We ship 0009482121 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 0009482121. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 80°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 12. 0.145" (3.68mm) is the given possible contact length (post) values. 0.308" (7.82mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyester insulation material. It is shipped in tray package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 19 weeks standard lead time. Additionally, the product's output is 4.5a. It has 0.156" (3.96mm) of pitch-mating value. The splendid features of the product include board hooks. The product is available in board edge, through hole, right angle configuration. The product kk396, 41815, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy brass materials. Moreover, it corresponds to 000948, a base product number of the product. The product is designated with the ear99 code number.
