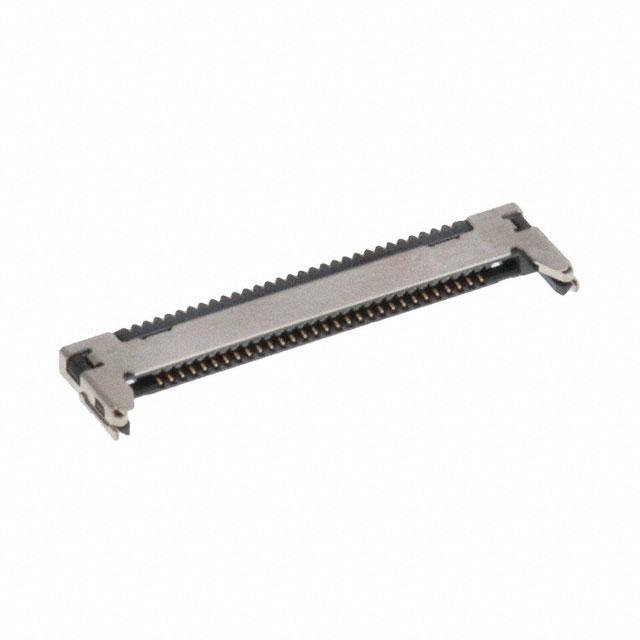

Molex 5010443010
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-30°C ~ 75°C
Contact Finish Thickness - Post:
16.0µin (0.41µm)
Number of Positions:
30
Insulation Height:
0.045" (1.15mm)
Voltage Rating:
30V
REACH Status:
REACH Unaffected
edacadModel:
5010443010 Models
Applications:
General Purpose, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2818810
Insulation Color:
Black
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Plastic, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
0.2A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.016" (0.40mm)
Ingress Protection:
-
Features:
Shielded, Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
501044
Contact Type:
Center Strip Contact
Contact Material:
Copper Alloy
Base Product Number:
501044
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5010443010 on website for other similar products.
We accept all major payment methods for all products including ET17536365. Please check your shopping cart at the time of order.
You can order Molex brand products with 5010443010 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Molex 5010443010. You can also check on our website or by contacting our customer support team for further order details on Molex 5010443010.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17536365 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Molex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17536365.
Yes. We ship 5010443010 Internationally to many countries around the world.
This is manufactured by Molex. The manufacturer part number is 5010443010. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -30°c ~ 75°c operating temperature range. Additionally, it features 16.0µin (0.41µm) of post thickness. The product carries possible position value of 30. 0.045" (1.15mm) of insulation height. Moreover, the product has a nominal 30v voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a robust plastic, glass filled insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 0.2a per contact. It has 0.016" (0.40mm) of pitch-mating value. The splendid features of the product include shielded, solder retention. The product is available in surface mount, right angle configuration. The product 501044, is a highly preferred choice for users. It has typical contact type of center strip contact. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 501044, a base product number of the product. The product is designated with the ear99 code number.
