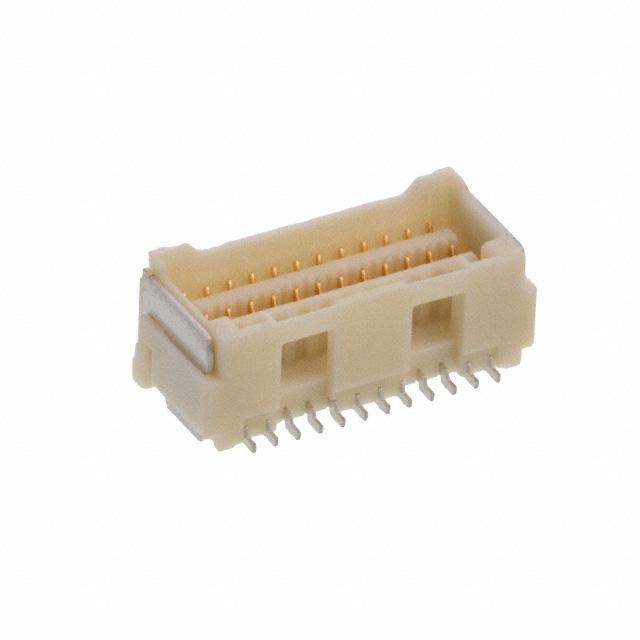

Molex 5054062460

5054062460 Molex
5054062460
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
24
title:
5054062460
Insulation Height:
0.344" (8.75mm)
Insulation Color:
Beige
REACH Status:
REACH Unaffected
edacadModel:
5054062460 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6099662
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.059" (1.50mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount
Series:
CLIK-Mate 505406
Packaging:
Tape & Reel (TR)
Insulation Material:
Resin
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
505406
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5054062460. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 24. 0.344" (8.75mm) of insulation height. In addition, beige is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount configuration. The product clik-mate 505406, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust resin insulation material. It has typical contact type of forked. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 505406, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs 28/Feb/2021(PCN Obsolescence/ EOL)
pdf icon
PS-505406-001 Spec(Datasheets)
pdf icon
505406-2460.pdf(3D Drawings)
pdf icon
5054062460 Drawing(Product Drawings)
