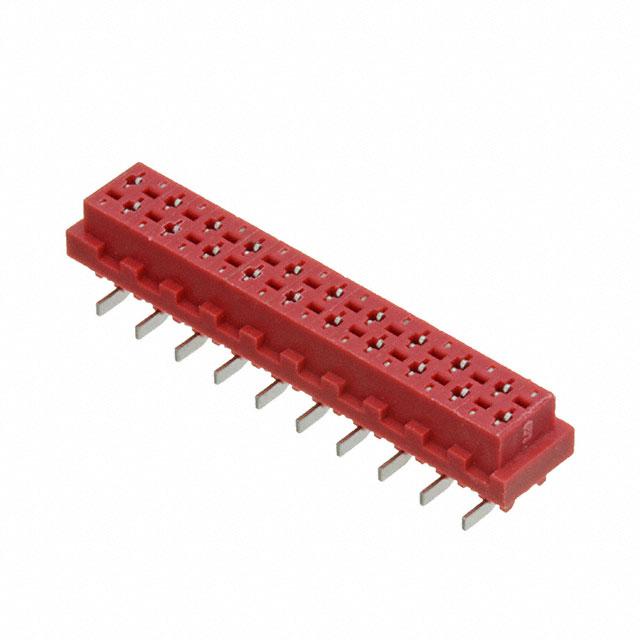

CNC Tech 3521-20-0101-99

3521-20-0101-99 CNC Tech
3521-20-0101-99
CNC Tech

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Length - Post:
-
Insulation Height:
0.197" (5.00mm)
Voltage Rating:
500V
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Red
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA9T), Nylon 9T
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
1A
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
-
Contact Type:
Forked
Contact Material:
Bronze
Base Product Number:
3521
ECCN:
EAR99
Checking for live stock

This is manufactured by CNC Tech. The manufacturer part number is 3521-20-0101-99. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 20. 0.197" (5.00mm) of insulation height. Moreover, the product has a nominal 500v voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, red is the insulation color of the product. It has a robust polyamide (pa9t), nylon 9t insulation material. It is shipped in tube package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 1a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in surface mount configuration. It has typical contact type of forked. The product is made from sturdy bronze materials. Moreover, it corresponds to 3521, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
3521-xx-0101-99 Drawing(Product Drawings)
pdf icon
CNC Tech RoHS_REACH _CA Prop_Halogen(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 3521-20-0101-99 on website for other similar products.
We accept all major payment methods for all products including ET17504918. Please check your shopping cart at the time of order.
You can order CNC Tech brand products with 3521-20-0101-99 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CNC Tech 3521-20-0101-99. You can also check on our website or by contacting our customer support team for further order details on CNC Tech 3521-20-0101-99.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17504918 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CNC Tech" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17504918.
Yes. We ship 3521-20-0101-99 Internationally to many countries around the world.
