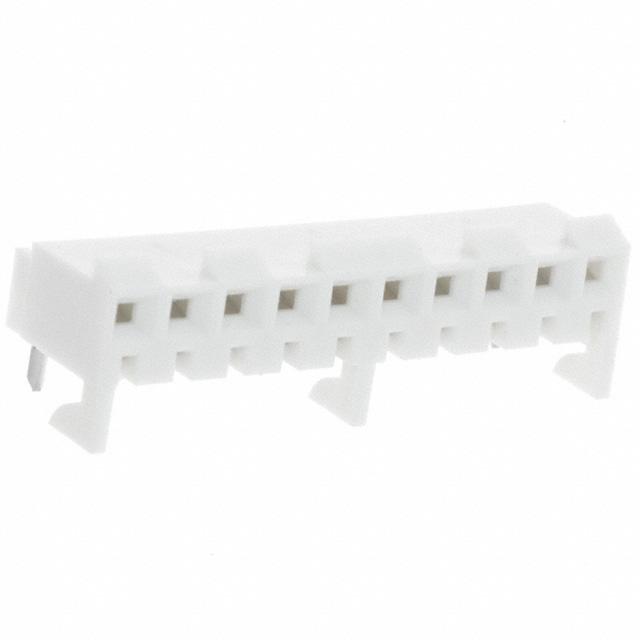

Molex 0009483105

0009483105 Molex
0009483105
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 80°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
10
Insulation Height:
0.308" (7.82mm)
Voltage Rating:
600V
REACH Status:
REACH Unaffected
edacadModel:
0009483105 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/863340
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyester
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
19 Weeks
Current Rating (Amps):
4.5A
Contact Length - Post:
0.145" (3.68mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
Board Hooks
Mounting Type:
Board Edge, Through Hole, Right Angle
Series:
KK396, 41815
Contact Type:
Female Socket
Contact Material:
Brass
Base Product Number:
000948
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0009483105. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 80°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 10. 0.308" (7.82mm) of insulation height. Moreover, the product has a nominal 600v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyester insulation material. It is shipped in tray package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 19 weeks standard lead time. Additionally, the product's output is 4.5a. 0.145" (3.68mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The splendid features of the product include board hooks. The product is available in board edge, through hole, right angle configuration. The product kk396, 41815, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy brass materials. Moreover, it corresponds to 000948, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
09-48-3105 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Plating Location 02/Dec/2020(PCN Assembly/Origin)
pdf icon
09-48-3105(Datasheets)
pdf icon
09-48-3105.pdf(3D Drawings)
