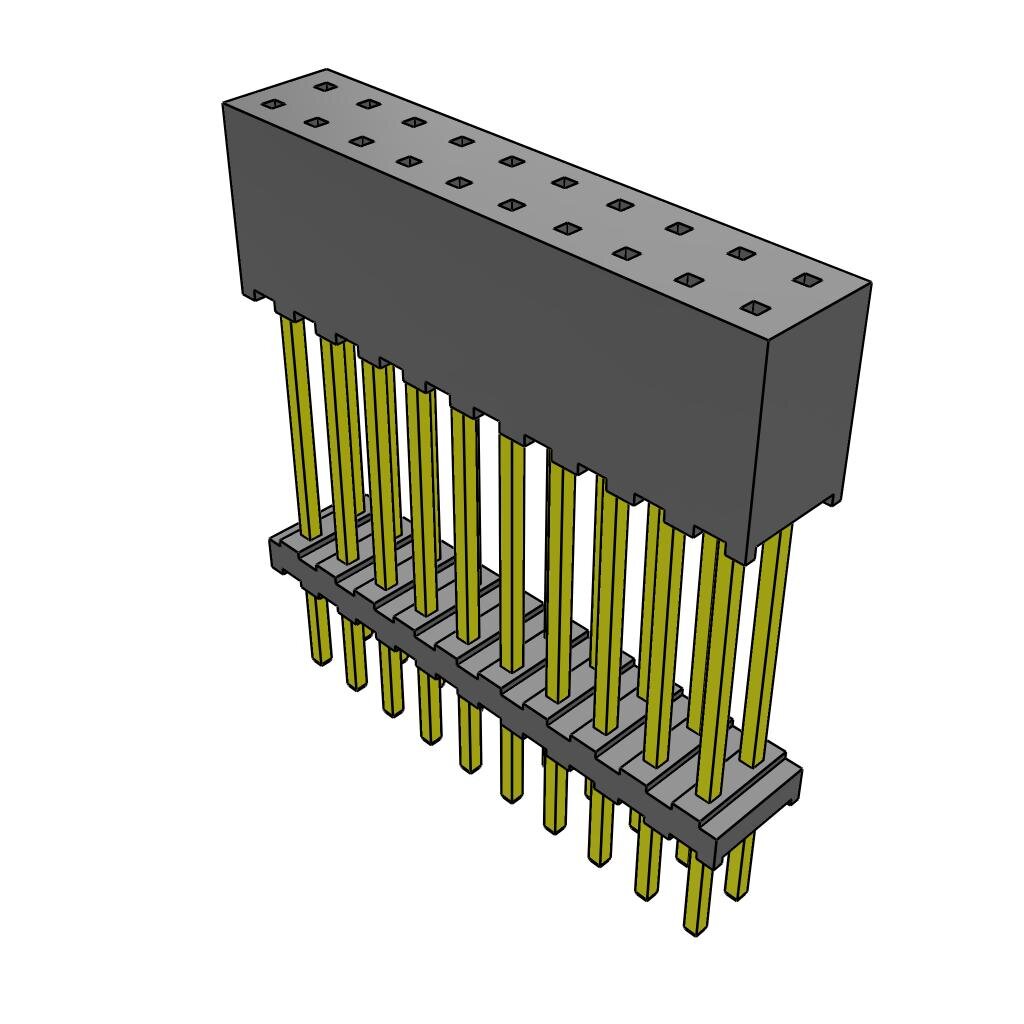

Samtec Inc. ESQT-110-02-F-D-680

ESQT-110-02-F-D-680 Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
20
Insulation Height:
0.680" (17.27mm)
Insulation Color:
Black
edacadModel:
ESQT-110-02-F-D-680 Models
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7196247
Contact Finish Thickness - Mating:
3.00µin (0.076µm)
Voltage Rating:
-
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Elevated Socket
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Type:
Forked
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
4.5A per Contact
Contact Length - Post:
0.170" (4.32mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
ESQT
Packaging:
Bulk
Mated Stacking Heights:
-
Contact Finish - Post:
Tin
Base Product Number:
ESQT-110
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is ESQT-110-02-F-D-680. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 20. 0.680" (17.27mm) of insulation height. In addition, black is the insulation color of the product. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. However, 3.00µin (0.076µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.079" (2.00mm) of row spacing. elevated socket Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. It has typical contact type of forked. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 4.5a per contact. 0.170" (4.32mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product esqt, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has possible tin contact post finishing. Moreover, it corresponds to esqt-110, a base product number of the product. The product is designated with the ear99 code number.
