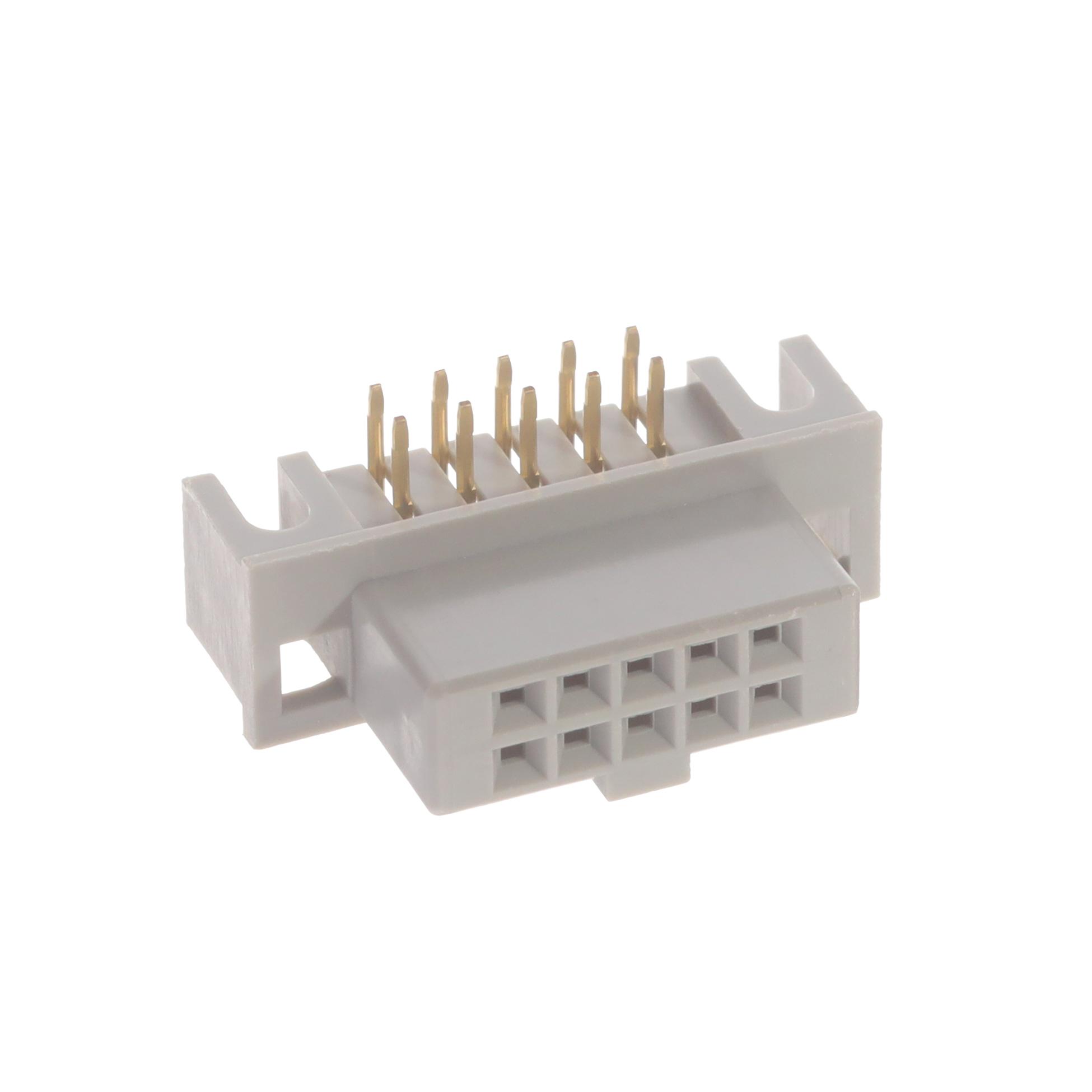

3M 5110-B7A2PL

5110-B7A2PL 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
10
Insulation Height:
0.350" (8.89mm)
Insulation Color:
Gray
REACH Status:
REACH Unaffected
edacadModel:
5110-B7A2PL Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2397240
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
1000V
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.102" (2.60mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Mounting Flange, Polarizing Key
Mounting Type:
Through Hole, Right Angle
Series:
5100
Packaging:
Bulk
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
5110
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 5110-B7A2PL. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 10. 0.350" (8.89mm) of insulation height. In addition, gray is the insulation color of the product. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 1000v voltage rating. It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 1a. 0.102" (2.60mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include mounting flange, polarizing key. The product is available in through hole, right angle configuration. The product 5100, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 5110, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Interconnect Catalog(Datasheets)
pdf icon
5100 Series Polarized Brdmnt Sckt w/ Rt. Angle Solder Tails(Datasheets)
