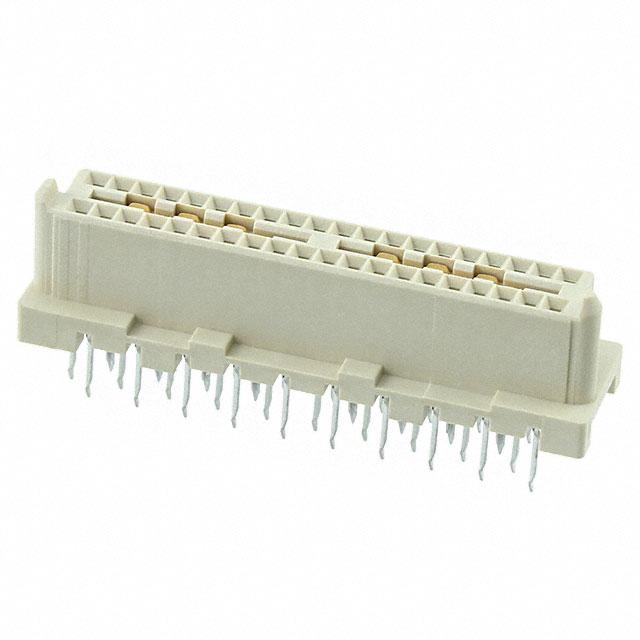

TE Connectivity AMP Connectors 5536254-1
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
40
Insulation Height:
0.320" (8.13mm)
Voltage Rating:
30VAC
REACH Status:
Vendor Undefined
edacadModel:
5536254-1 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2055997
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
10.92mm, 17.78mm, 18.75mm
Insulation Material:
Thermoplastic
Package:
Tube
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Ground Bus (Plane)
Mounting Type:
Through Hole
Series:
Micro-Strip
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
5536254
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 5536254-1 on website for other similar products.
We accept all major payment methods for all products including ET12127274. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 5536254-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 5536254-1. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 5536254-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12127274 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12127274.
Yes. We ship 5536254-1 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5536254-1. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 40. 0.320" (8.13mm) of insulation height. Moreover, the product has a nominal 30vac voltage rating. In addition, it is vendor undefined. It comes in 2 of rows. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 10.92mm, 17.78mm, 18.75mm. It has a robust thermoplastic insulation material. It is shipped in tube package . It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, ground bus (plane). The product is available in through hole configuration. The product micro-strip, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 5536254, a base product number of the product. The product is designated with the ear99 code number.
