Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
50

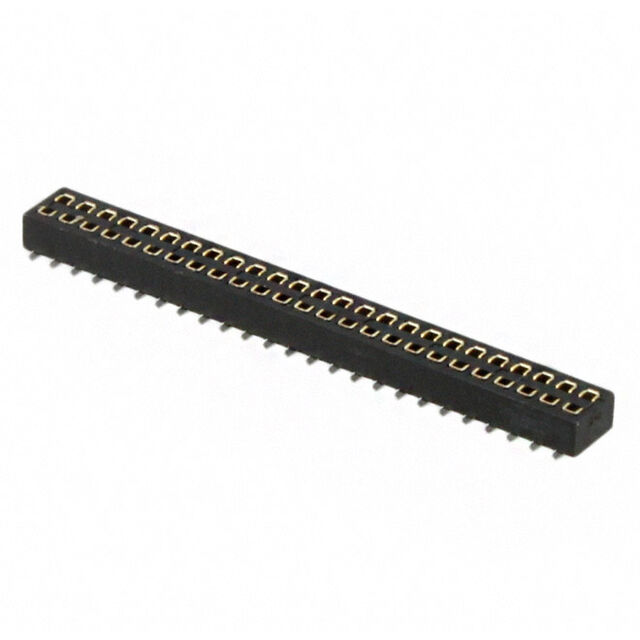

title:
M50-3152542
Insulation Height:
0.087" (2.20mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
M50-3152542 Models
Applications:
General Purpose, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2264357
Contact Shape:
Square
Mated Stacking Heights:
3.2mm, 3.9mm, 4.6mm, 5.3mm, 7.2mm, 8.6mm
Voltage Rating:
-
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Archer M50
Packaging:
Tube
Insulation Material:
Polyamide (PA6T), Nylon 6T
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
M50-315
ECCN:
EAR99
