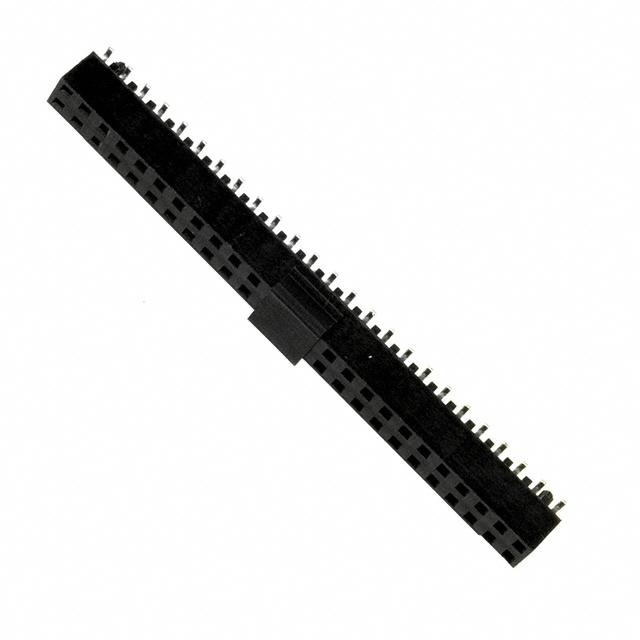

3M 150250-2020-RB-WF
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
50
Contact Length - Post:
-
Insulation Height:
0.183" (4.65mm)
Voltage Rating:
500VDC
REACH Status:
REACH Unaffected
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
1A
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
1502
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
150250
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 150250-2020-RB-WF on website for other similar products.
We accept all major payment methods for all products including ET11890129. Please check your shopping cart at the time of order.
You can order 3M brand products with 150250-2020-RB-WF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 150250-2020-RB-WF. You can also check on our website or by contacting our customer support team for further order details on 3M 150250-2020-RB-WF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11890129 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11890129.
Yes. We ship 150250-2020-RB-WF Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 150250-2020-RB-WF. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 50. 0.183" (4.65mm) of insulation height. Moreover, the product has a nominal 500vdc voltage rating. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic insulation material. It is shipped in tape & reel (tr) package . It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 1a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product 1502, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 150250, a base product number of the product. The product is designated with the ear99 code number.
