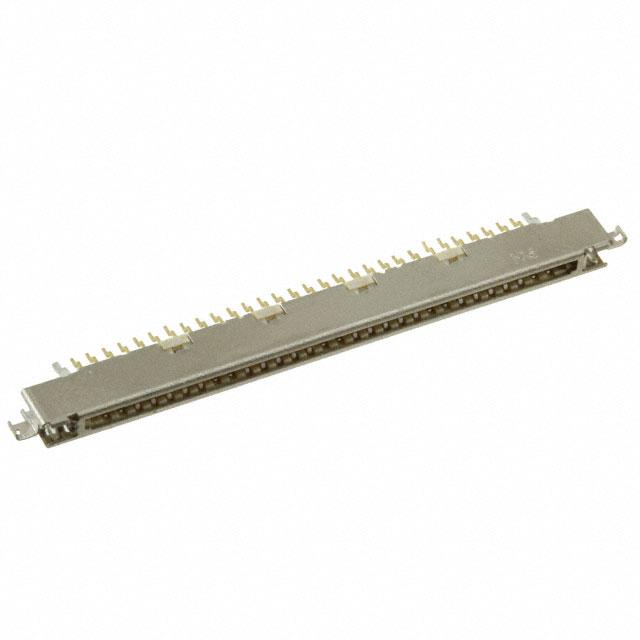

Hirose Electric Co Ltd MDF76TW-30S-1H(55)
Product Information
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
1.25µin (0.032µm)
Number of Positions:
30
Insulation Height:
-
Voltage Rating:
200VAC
edacadModel:
MDF76TW-30S-1H(55) Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2137320
Insulation Color:
Beige
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Board Cutout, Surface Mount, Right Angle
Series:
MDF76
Contact Type:
Center Strip Contact
Contact Material:
Phosphor Bronze
Base Product Number:
MDF7
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search MDF76TW-30S-1H(55) on website for other similar products.
We accept all major payment methods for all products including ET11889386. Please check your shopping cart at the time of order.
You can order Hirose Electric Co Ltd brand products with MDF76TW-30S-1H(55) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Hirose Electric Co Ltd MDF76TW-30S-1H(55). You can also check on our website or by contacting our customer support team for further order details on Hirose Electric Co Ltd MDF76TW-30S-1H(55).
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11889386 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Hirose Electric Co Ltd" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11889386.
Yes. We ship MDF76TW-30S-1H(55) Internationally to many countries around the world.
This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is MDF76TW-30S-1H(55). It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. Additionally, it features 1.25µin (0.032µm) of post thickness. The product carries possible position value of 30. Moreover, the product has a nominal 200vac voltage rating. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in board cutout, surface mount, right angle configuration. The product mdf76, is a highly preferred choice for users. It has typical contact type of center strip contact. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to mdf7, a base product number of the product. The product is designated with the ear99 code number.
