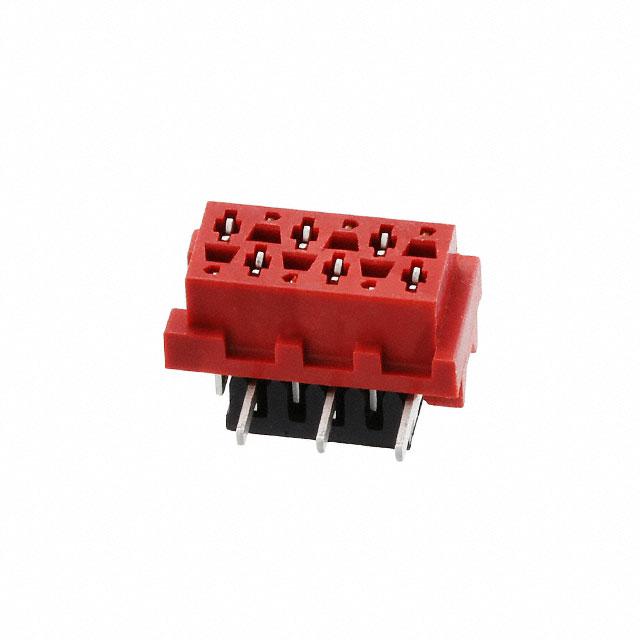

TE Connectivity AMP Connectors 7-188431-6

7-188431-6 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
6
Insulation Height:
0.154" (3.90mm)
Insulation Color:
Red
REACH Status:
Vendor Undefined
edacadModel:
7-188431-6 Models
Applications:
Automotive, General Purpose
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4731750
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
100VDC
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle, Bottom Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
118.1µin (3.00µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
31 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Pick and Place
Mounting Type:
Surface Mount, Through Board
Series:
Micro-MaTch
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Type:
Forked
Contact Material:
Phosphor Bronze
Base Product Number:
188431
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 7-188431-6. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 118.1µin (3.00µm) of post thickness. The product carries possible position value of 6. 0.154" (3.90mm) of insulation height. In addition, red is the insulation color of the product. In addition, it is vendor undefined. The product is widely employed in automotive, general purpose. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 100vdc voltage rating. It carries 0.100" (2.54mm) of row spacing. receptacle, bottom entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 31 weeks standard lead time. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include pick and place. The product is available in surface mount, through board configuration. The product micro-match, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It has typical contact type of forked. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 188431, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
188431 Drawing 12/Aug/2014(PCN Design/Specification)
pdf icon
7-188431-6(Datasheets)
