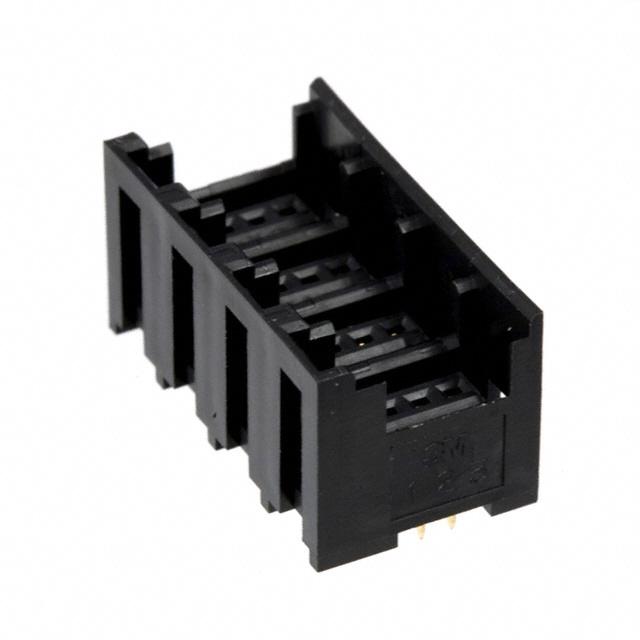

3M 37212-62M3-003PL
Product Information
Current Rating:
3A
Minimum Operating Temperature:
-20°C
Mounting Type:
Through Hole
Voltage Rating:
32 V dc
Gender:
Female
Body Orientation:
Straight
Pitch:
2mm
Termination Method:
Solder
Housing Material:
Liquid Crystal Polymer
Number of Rows:
4
Contact Plating:
Gold over Nickel
Series:
372
Number of Contacts:
12
Maximum Operating Temperature:
+60°C
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
Flash
Number of Positions:
12
Insulation Height:
0.512" (13.00mm)
Voltage Rating:
32V
REACH Status:
REACH Unaffected
edacadModel:
37212-62M3-003PL Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
4
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1632992
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
0.256" (6.50mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Latch Holder
Termination:
Press-Fit, Solder
standardLeadTime:
28 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Mini-Clamp I, 372
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
37212
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 37212-62M3-003PL on website for other similar products.
We accept all major payment methods for all products including ET10917843. Please check your shopping cart at the time of order.
You can order 3M brand products with 37212-62M3-003PL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 3M 37212-62M3-003PL. You can also check on our website or by contacting our customer support team for further order details on 3M 37212-62M3-003PL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10917843 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "3M" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10917843.
Yes. We ship 37212-62M3-003PL Internationally to many countries around the world.
This is manufactured by 3M. The manufacturer part number is 37212-62M3-003PL. The product has a current rating of 3a. Whereas, the minimum operating temperature of the product is -20°c. The product is available in through hole configuration. Moreover, the product has a nominal 32 v dc voltage rating. In addition, female is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 2mm. It allows solder termination method. The product also features robust liquid crystal polymer housing material. It comes in 4 of rows. The high-quality gold over nickel is used as contact plating material. The product 372, is a highly preferred choice for users. The product contains 12 contacts. It has a maximum operating temperature of +60°c. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. Additionally, it features flash of post thickness. The product carries possible position value of 12. 0.512" (13.00mm) of insulation height. Moreover, the product has a nominal 32v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in bulk package . It carries 0.256" (6.50mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 28 weeks standard lead time. Additionally, the product's output is 3a. It has 0.079" (2.00mm) of pitch-mating value. The product mini-clamp i, 372, is a highly preferred choice for users. It has typical contact type of female socket. Moreover, it corresponds to 37212, a base product number of the product. The product is designated with the ear99 code number.
