HTSUS:
8536.69.4040
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon, Glass Filled
Operating Temperature:
-40°C ~ 100°C
Screw Size:
-
Wire Strip Length:
-

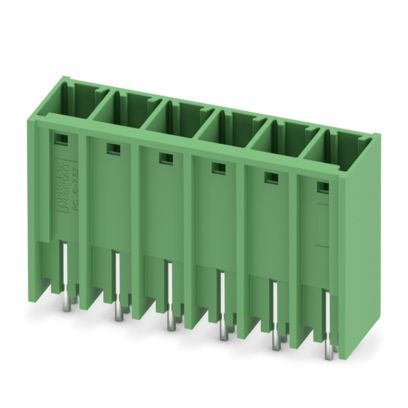

Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
6
Wire Gauge or Range - mm²:
-
title:
1131535
Plug Wire Entry:
-
Insulation Height:
1.110" (28.20mm)
edacadModel:
1131535 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/17941377
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.102" (2.60mm)
Current - IEC:
41A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
600 V
Torque - Screw:
-
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON PCV
Positions Per Level:
6
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
35 A
Pitch:
0.300" (7.62mm)
Contact Material:
Copper Alloy
ECCN:
EAR99
Shrouded/Unshrouded:
Shrouded
Row Pitch:
7.62mm
Housing Material:
Polyamide Fibreglass
Tail Pin Length:
2.6mm
Connector System:
COMBICON PC 6 hybrid
Number of Rows:
1
Contact Plating:
Tin Plated
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Gender:
Male
Standards/Approvals:
cULus, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, ISO 6988, UL 94 V0, VDE
Mount Type:
Solder
Current:
41A
Series:
PCV
Voltage:
63 V
Termination Type:
Solder
Pitch:
7.62mm
Mating Pin Length:
2.6mm
Number of Contacts:
6
Contact Material:
Copper Alloy
