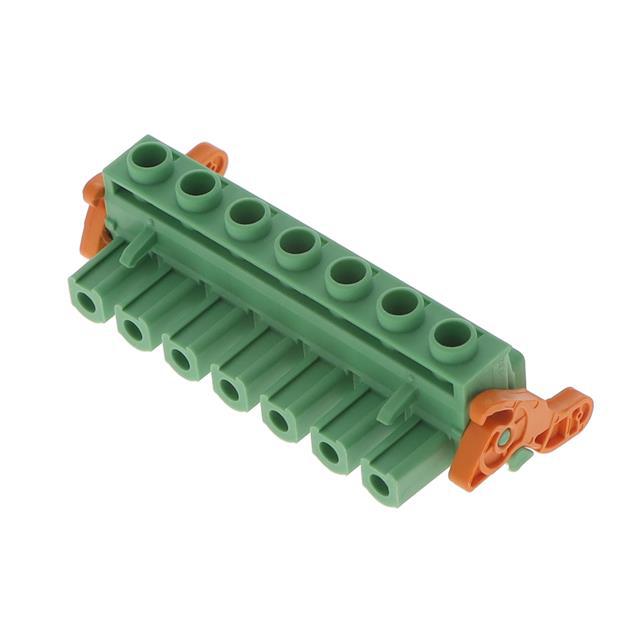

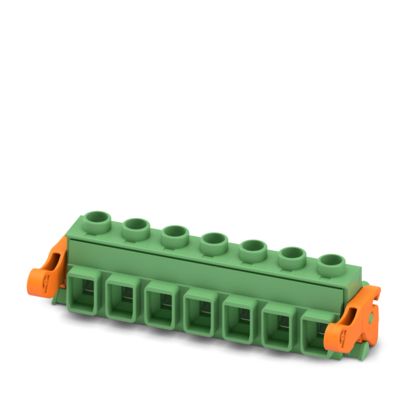

Phoenix Contact 1812801

1812801 Phoenix Contact
1812801
1812801 Phoenix Contact
Phoenix Contact

Product Information

Housing Material:
Polyamide
Number of Contacts:
7
Series:
GMSTB
Colour:
Green
Length:
29.1mm
Contact Gender:
Female
Current:
16A
Width:
60.94 mm
Depth:
17.5mm
Number of Rows:
1
Standards/Approvals:
CSA, UL 94, EN 60695-2-12, IEC 60112, VDE, IEC 61984, EN 60695-2-13, cULus Recognised, IEC 60664-1:2007-04
Voltage:
1000 V
Termination Type:
Screw
Pitch:
7.62mm
Product Type:
PCB Connector
Connector Gender:
Female
Mount Type:
Locking Jack
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
8mm
Type:
Plug, Female Sockets
Number of Positions:
7
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.689" (17.50mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
16A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
600 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Ejector Latches, Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON GMSTB
Positions Per Level:
7
Header Orientation:
-
Current - UL:
18.5 A
Pitch:
0.300" (7.62mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

TERM BLOCK PLUG 7POS STR 7.62MM

pdf icon
Datasheet - 1812801(Technical Reference)
pdf icon
Multiple Devices Design 18/Apr/2019(PCN Design/Specification)
pdf icon
Mult Devs Design Chg 19/NOV/2019(PCN Design/Specification)
