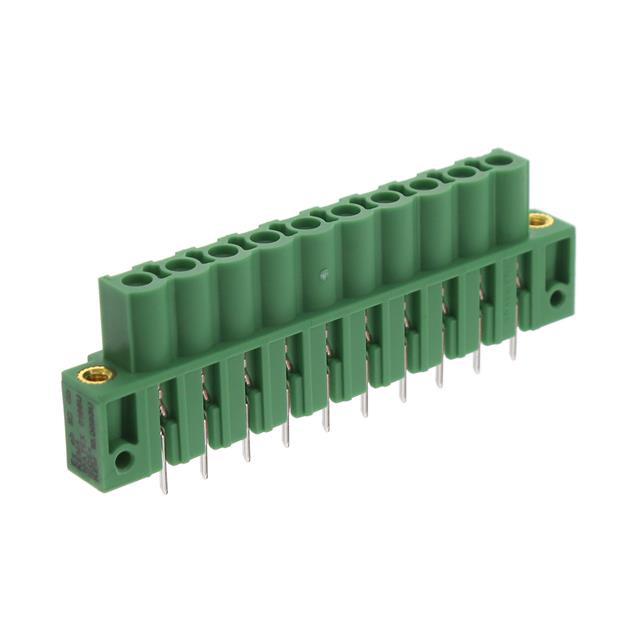

Phoenix Contact 1810528

1810528 Phoenix Contact
1810528
Phoenix Contact

Product Information

Current Rating:
12.0A
Mounting Type:
Through Hole
Voltage Rating:
630.0 V
Series:
ICV 2.5/10-GF-5.08 EX
Body Orientation:
Straight
Termination Method:
Solder
Pluggable Terminal Block Type:
Inverted Header
Number of Rows:
1
Pitch:
5.08mm
Number of Contacts:
10
Contact Material:
Tin
HTSUS:
8536.69.4040
Positions Per Level:
10
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Female Sockets
Number of Positions:
10
Contact Tail Length:
0.142" (3.60mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.748" (19.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Mating and Mounting Flange, Retention Latches
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON ICV
Header Orientation:
Vertical
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
Contact Material:
-
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1810528. The product has a current rating of 12.0a. The product is available in through hole configuration. Moreover, the product has a nominal 630.0 v voltage rating. The product icv 2.5/10-gf-5.08 ex, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 5.08mm. The product contains 10 contacts. The product is made from sturdy tin materials. It is assigned with possible HTSUS value of 8536.69.4040. It has 10 positions each level. Moreover, it has solder terminal style. The product also features robust polyamide (pa), nylon housing material. It comes in header, female sockets configuration. The product carries possible position value of 10. The typical tail length of the product is [Contact Tail Lenght]. 0.748" (19.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. The product carries 1 levels. It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 320 v. The splendid features of the product include mating and mounting flange, retention latches. It has a classic green colour. The product combicon icv, is a highly preferred choice for users. The product has a vertical of a header orientation. Moreover, the product is 0.200" (5.08mm). The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
