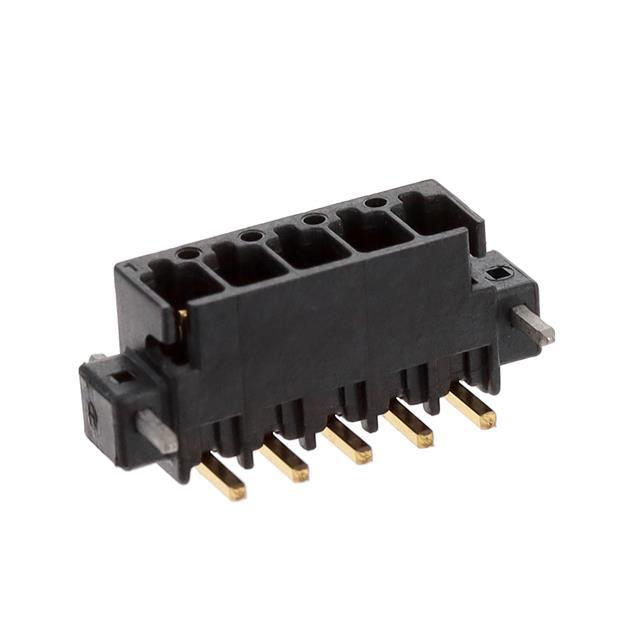

Phoenix Contact 1821274
Product Information
Current Rating:
6.0A
Mounting Type:
Through Hole
Voltage Rating:
160.0 V
Series:
MC 0.5/ 5-G-2.54 P20 THR R44
Body Orientation:
Right Angle
Termination Method:
Solder
Pluggable Terminal Block Type:
Header
Number of Rows:
1
Pitch:
2.54mm
Number of Contacts:
5
Contact Material:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
5
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.189" (4.80mm)
REACH Status:
REACH Unaffected
edacadModel:
1821274 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5189376
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
6A
Contact Tail Length:
0.079" (2.00mm)
Voltage - UL:
150 V
Torque - Screw:
-
standardLeadTime:
7 Weeks
Contact Mating Finish:
Gold
Voltage - IEC:
160 V
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Color:
Black
Series:
MICRO-COMBICON MC
Positions Per Level:
5
Header Orientation:
90°, Right Angle
Current - UL:
6 A
Wire Gauge or Range - AWG:
-
Pitch:
0.100" (2.54mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1821274 on website for other similar products.
We accept all major payment methods for all products including ET13948165. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1821274 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1821274. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1821274.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948165 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948165.
Yes. We ship 1821274 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1821274. The product has a current rating of 6.0a. The product is available in through hole configuration. Moreover, the product has a nominal 160.0 v voltage rating. The product mc 0.5/ 5-g-2.54 p20 thr r44, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 2.54mm. The product contains 5 contacts. The product is made from sturdy gold materials. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust liquid crystal polymer (lcp) housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 5. 0.189" (4.80mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 6a. The typical tail length of the product is [Contact Tail Lenght]. While 150 v is the typical voltage of the product. It has a long 7 weeks standard lead time. The mating finish of the contact is gold. The nominal voltage of the product is 160 v. The splendid features of the product include board guide. It has a classic black colour. The product micro-combicon mc, is a highly preferred choice for users. It has 5 positions each level. The product has a 90°, right angle of a header orientation. The typical current includes 6 a. Moreover, the product is 0.100" (2.54mm). The product carries 1 levels. The product is designated with the ear99 code number.
