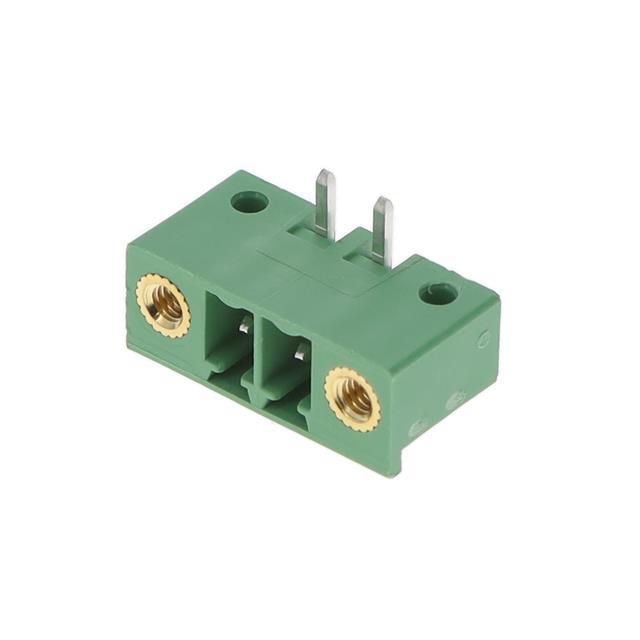

Phoenix Contact 1817806
Product Information
Current Rating:
8A
Mounting Type:
Through Hole
Voltage Rating:
250 V
Series:
MC 1.5/2-GF-3.81-LR
Colour:
Green
Material:
PBT
Pluggable Terminal Block Type:
Header
Termination Method:
Solder
Number of Rows:
1
Pitch:
3.81mm
Number of Contacts:
2
Body Orientation:
Right Angle
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
2
Contact Tail Length:
-
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.285" (7.25mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
9 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
Locking Ramp, Mating and Mounting Flange
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MC
Positions Per Level:
2
Header Orientation:
90°, Right Angle
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1817806 on website for other similar products.
We accept all major payment methods for all products including ET13857844. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1817806 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1817806. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1817806.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13857844 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13857844.
Yes. We ship 1817806 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1817806. The product has a current rating of 8a. The product is available in through hole configuration. Moreover, the product has a nominal 250 v voltage rating. The product mc 1.5/2-gf-3.81-lr, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable pbt. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 3.81mm. The product contains 2 contacts. It has right angle body orientation. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust polybutylene terephthalate (pbt) housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 2. 0.285" (7.25mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. While 300 v is the typical voltage of the product. It has a long 9 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 250 v. The splendid features of the product include locking ramp, mating and mounting flange. It has a classic green colour. The product combicon mc, is a highly preferred choice for users. It has 2 positions each level. The product has a 90°, right angle of a header orientation. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product carries 1 levels. The product is designated with the ear99 code number.
