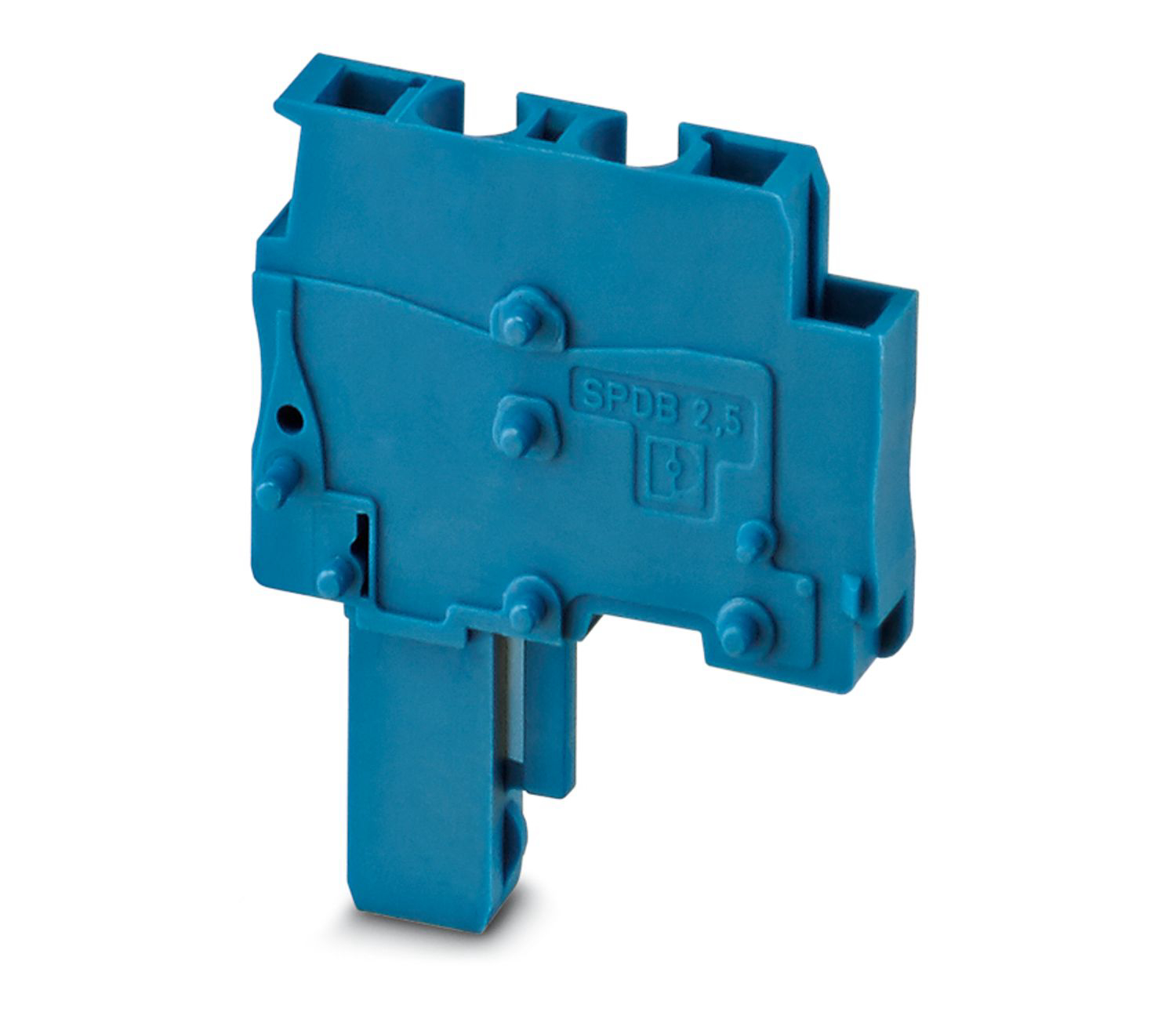

Series:
SPDB 2.5/1-R BU
Colour:
Blue
Material:
Polyamide
Accessory Type:
Plug
Hazardous Area Certification:
IECEE CB Scheme, EAC, DNV GL, cULus, LR, cUL, CSA, BV, UL, VDE
Standards/Approvals:
CSA IEC 61984, cUL Recognised, VDE Zeichengenehmigung, UL Recognised, UL 94 V0, LR, IECEE CB Scheme, EAC, BV, DNV GL, CHINA RoHS, CSA, cULus Recognised
For Use With:
Basic Terminal Blocks
Product Type:
Pluggable Terminal Block
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screwless - Spring Cage, Tension Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Female Sockets
Number of Positions:
1 (Mate), 2 (Input)
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.08-4mm²
Plug Wire Entry:
180°
Insulation Height:
1.535" (39.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24A
Wire Gauge or Range - AWG:
12-28 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
-
Voltage - IEC:
500 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
CLIPLINE COMBI SPDB
Positions Per Level:
1
Header Orientation:
-
Current - UL:
20 A
Pitch:
-
Number of Levels:
1 (Mate), 2 (Input)
Contact Material:
-
ECCN:
EAR99
