Number of Levels:
1
Fused:
No
Termination Type:
Spring Cage
Colour:
Grey
Minimum Operating Temperature:
-60°C
Minimum Wire Size AWG:
28 AWG
Terminal Block Current:
24A
Number of Positions:
13
Hazardous Area Certification:
No
Standards/Approvals:
UL, EAC, DNV GL, cULus, cUL, LR, RS, IEC 61984, Bureau Veritas
Voltage:
500 V
Cable CSA:
0.08 to 4 mm²
Maximum Wire Size AWG:
12 AWG

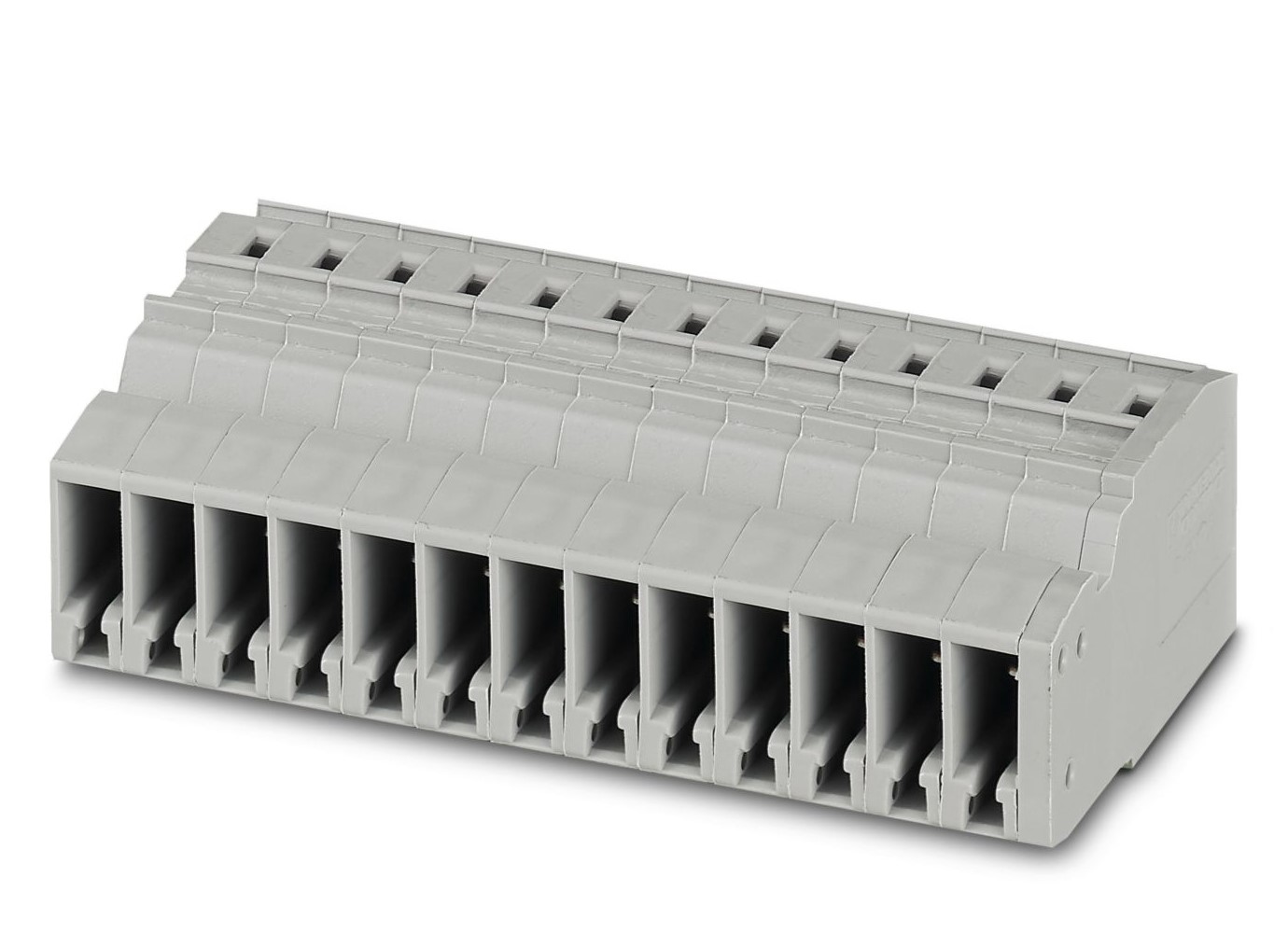

Product Type:
Combi Plug
Maximum Operating Temperature:
105°C
Sub Type:
Terminal
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screwless - Spring Cage, Tension Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Receptacle, Male Pins
Number of Positions:
13
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.08-4mm²
Plug Wire Entry:
180°
Insulation Height:
0.740" (18.80mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
24A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
-
Voltage - IEC:
500 V
Ingress Protection:
-
Features:
Coupling
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
CLIPLINE COMBI SC
Positions Per Level:
13
Header Orientation:
-
Current - UL:
20 A
Pitch:
-
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
