HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm

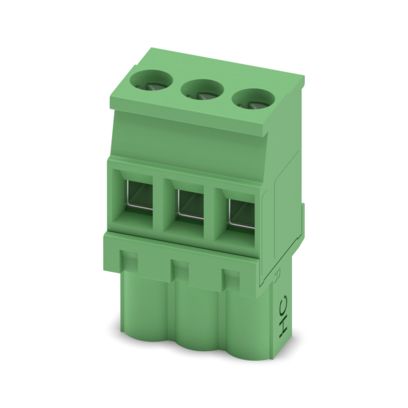

Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
title:
1912744
Plug Wire Entry:
270°
Insulation Height:
1.024" (26.01mm)
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
16A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MVSTBW
Positions Per Level:
3
Packaging:
Bulk
Header Orientation:
-
Current - UL:
16 A
Pitch:
0.197" (5.00mm)
ECCN:
EAR99
Contact Material:
-
Connector System:
5 HC, COMBICON MSTB 2
Number of Contacts:
3
Orientation:
90°
Housing Material:
Polyamide
Series:
MVSTBW
Sub Type:
PCB Connector
Contact Gender:
Female
Row Pitch:
5mm
Current:
16A
Number of Rows:
1
Standards/Approvals:
cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60112, IEC 60664-1:2007-04, IEC 61984, UL 94 V0, VDE approval
Voltage:
32 V
Contact Plating:
Tin Plated
Pitch:
5mm
Termination Type:
Screw
Product Type:
PCB Connector
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper Alloy
