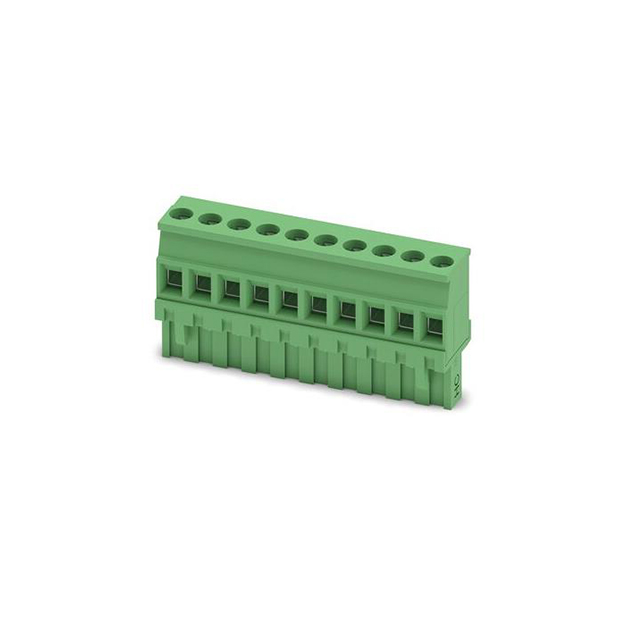

Phoenix Contact 1912485
Product Information
Series:
COMBICON MVSTBR
Current Rating:
16A
Mounting Type:
Plug-In
Voltage Rating:
320 V
Termination Method:
Screw
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
50.8mm
Width:
12.6mm
Depth:
26mm
Number of Rows:
1
Body Orientation:
Straight
Pitch:
5.08mm
Number of Contacts:
10
Type:
Plug
CAD Drawing:
3D CAD Model
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
10
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
90°
Insulation Height:
1.024" (26.01mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
16A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MVSTBR
Positions Per Level:
10
Header Orientation:
-
Current - UL:
16 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
ECCN:
EAR99
Contact Material:
-
Checking for live stock
FAQs
Yes. You can also search 1912485 on website for other similar products.
We accept all major payment methods for all products including ET13264310. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1912485 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1912485. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1912485.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13264310 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13264310.
Yes. We ship 1912485 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1912485. The product combicon mvstbr, is a highly preferred choice for users. The product has a current rating of 16a. The product is available in plug-in configuration. Moreover, the product has a nominal 320 v voltage rating. It allows screw termination method. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 50.8mm. Furthermore, the product is 12.6mm wide. The product comes in 26mm depth. It comes in 1 of rows. It has straight body orientation. Moreover, the product is 5.08mm. The product contains 10 contacts. It comes in plug configuration. It has 3d cad model CAD drawing . It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 10. A 0.2-2.5mm² of wire gauge. It also a 90° plug wire entry. 1.024" (26.01mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 16a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include retention latches (wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. It has 10 positions each level. The typical current includes 16 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number.
