HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Operating Temperature:
-

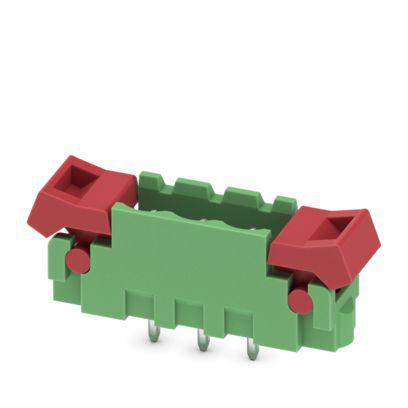

Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
3
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
edacadModel:
1808476 Models
edacadModelUrl:
/en/models/4451389
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Features:
Ejectors
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MSTBV
Positions Per Level:
3
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
12 A
Pitch:
0.200" (5.08mm)
ECCN:
EAR99
Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
3.9mm
Number of Contacts:
3
Orientation:
Straight
Housing Material:
Polybutylene Terephthalate
Shrouded/Unshrouded:
Shrouded
Series:
MSTBV
Contact Material:
Copper Alloy
Row Pitch:
5.08mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
CSA 13631-2585951, cULus E60425-19931011, EN ISO 22479, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, JEDEC JESD 201, UL 94 V0, VDE 40050648
Voltage:
32 V
Contact Plating:
Tin over Nickel
Pitch:
5.08mm
Mating Pin Length:
3.9mm
Termination Type:
Pin
Product Type:
PCB Header
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
