Shrouded/Unshrouded:
Shrouded
Row Pitch:
3.81mm
Housing Material:
Liquid Crystal Polymer
Tail Pin Length:
1.4mm
Connector System:
COMBICON MC 1.5
Number of Rows:
1
Contact Plating:
Tin Plated

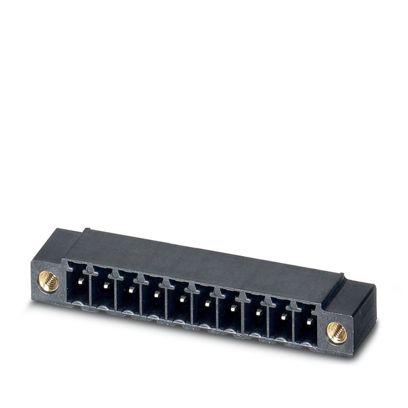

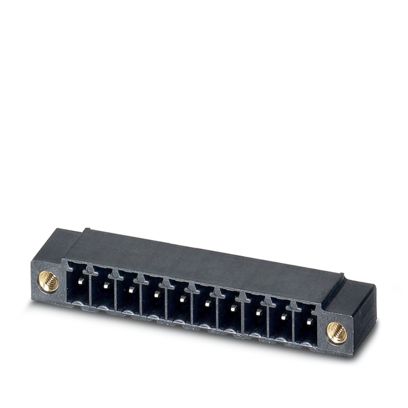

Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Contact Gender:
Male
Standards/Approvals:
cULus Recognised, DIN EN 61340-5-1:2008-07, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-9-1:2010-03, IEC 60664-1:2007-04, ISO 6988:1985-02, VDE approval
Mount Type:
Wave Soldering Mount
Current:
8A
Orientation:
Straight
Series:
MC
Voltage:
160 V
Termination Type:
Solder
Pitch:
3.81mm
Mating Pin Length:
1.4mm
Number of Contacts:
9
Contact Material:
Copper Alloy
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Housing Material:
Liquid Crystal Polymer (LCP)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
9
Contact Tail Length:
0.055" (1.40mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.272" (6.91mm)
Material Flammability Rating:
UL94 V-0
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Through Hole
Color:
Black
Series:
COMBICON MC
Positions Per Level:
9
Header Orientation:
90°, Right Angle
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
