HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:

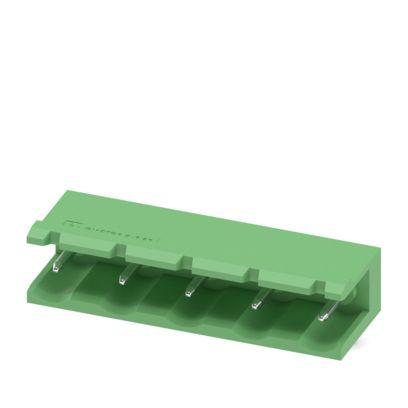

Header, Male Pins, Shrouded (2 Side)
Number of Positions:
5
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.339" (8.61mm)
edacadModel:
1766152 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4450421
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
0.138" (3.50mm)
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON GMSTB
Positions Per Level:
5
Header Orientation:
90°, Right Angle
Current - UL:
15 A
Wire Gauge or Range - AWG:
-
Pitch:
0.300" (7.62mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
3.23mm
Number of Contacts:
5
Orientation:
Angled
Housing Material:
Polyamide
Shrouded/Unshrouded:
Shrouded
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
7.62mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, ISO 6988, UL 94 V0, VDE
Voltage:
63 V
Contact Plating:
Tin Plated
Pitch:
7.62mm
Mating Pin Length:
3.23mm
Termination Type:
Solder
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
