Housing Material:
Polyamide
Number of Contacts:
8
Series:
GMVSTBW
Colour:
Green
Length:
12.6mm
Contact Gender:
Female
Current:
12A
Width:
58 mm
Depth:
26mm
Number of Rows:
1
Standards/Approvals:
IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, IEC 60512-5-1:2002-02, IEC 60512-3-1:2002-02, IEC 60664-1:2007-04, IEC 60112, UL 94 V0, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, CSA, cULus, VDE, EU RoHS, CHINA RoHS, EU REACH
Voltage:
630 V
Termination Type:
Screw
Pitch:
7.5mm

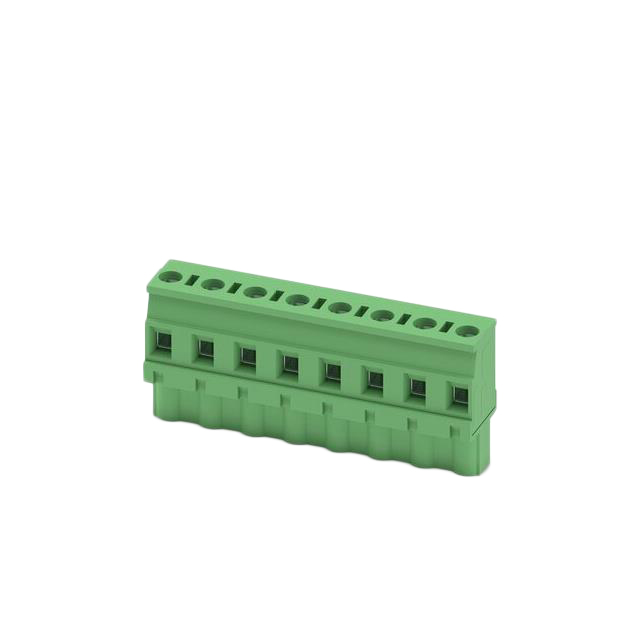

Product Type:
PCB Connector
Connector Gender:
Female
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Operating Temperature:
-
Type:
Plug, Female Sockets
Number of Positions:
8
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
270°
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
standardLeadTime:
21 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON GMVSTBW
Positions Per Level:
8
Packaging:
Bulk
Header Orientation:
-
Current - UL:
15 A
Pitch:
0.295" (7.50mm)
ECCN:
EAR99
