HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-

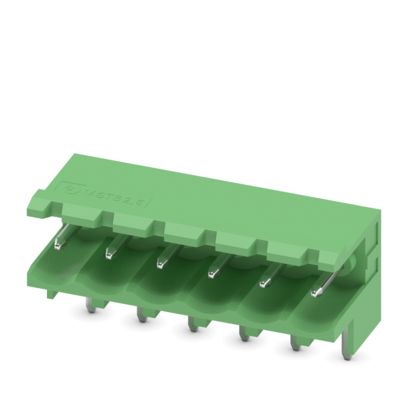

Type:
Header, Male Pins, Shrouded (2 Side)
Number of Positions:
6
Wire Gauge or Range - mm²:
-
title:
1736072
Plug Wire Entry:
-
Insulation Height:
0.490" (12.44mm)
edacadModel:
1736072 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4387605
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.138" (3.50mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MSTBW
Positions Per Level:
6
Packaging:
Bulk
Header Orientation:
90°, Right Angle
Current - UL:
15 A
Pitch:
0.197" (5.00mm)
Contact Material:
-
ECCN:
EAR99
Connector System:
COMBICON MSTB 2
Tail Pin Length:
3.5mm
Number of Contacts:
6
Termination Type:
Solder Pin
Housing Material:
Polybutylene Terephthalate
Shrouded/Unshrouded:
Shrouded
Series:
MSTBW
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
5mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
CSA 13631, cULus E60425-19931014, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, VDE 40050648
Voltage:
32 V
Contact Plating:
Tin Plated
Pitch:
5mm
Mating Pin Length:
3.5mm
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
