HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-

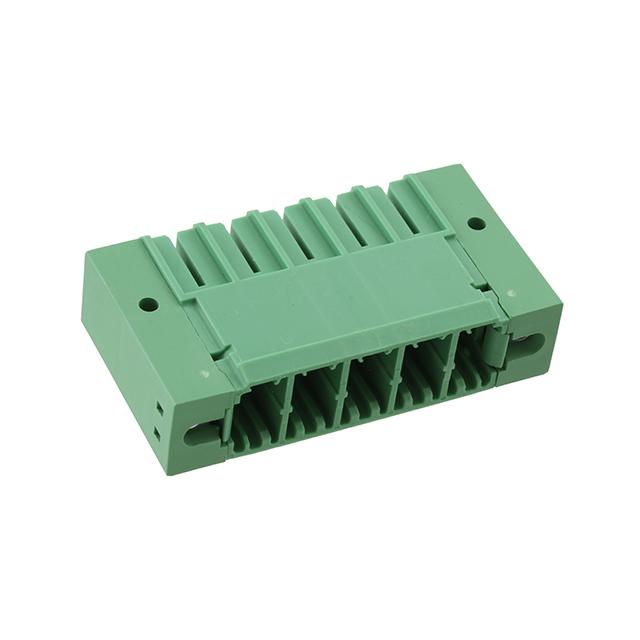

Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
5
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.563" (14.30mm)
REACH Status:
REACH Unaffected
edacadModel:
1720822 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3606189
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.197" (5.00mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
41A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Mating and Mounting Flange
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON PC
Positions Per Level:
5
Packaging:
Bulk
Header Orientation:
90°, Right Angle
Current - UL:
41 A
Pitch:
0.300" (7.62mm)
Contact Material:
-
ECCN:
EAR99
Connector System:
COMBICON PC 5 hybrid
Tail Pin Length:
5mm
Number of Contacts:
5
Termination Type:
Solder
Housing Material:
Polyamide
Shrouded/Unshrouded:
Shrouded
Series:
PC
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
7.62mm
Current:
32A
Number of Rows:
1
Standards/Approvals:
cULus Recognised, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, IEC 61984, ISO 6988:1985-02, UL 94 V0, UL Recognised
Voltage:
63 V
Contact Plating:
Tin Plated
Pitch:
7.62mm
Mating Pin Length:
5mm
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
