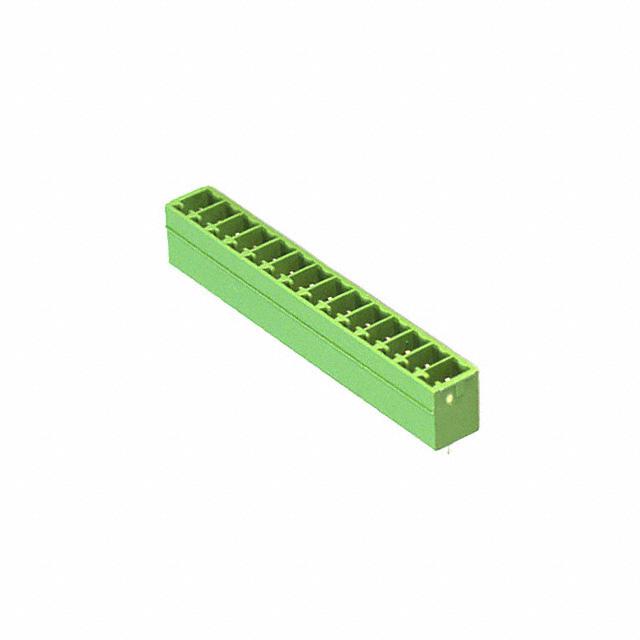

Phoenix Contact 1803549

1803549 Phoenix Contact
1803549
1803549
Phoenix Contact

Product Information

Accessory Type:
PCB Header
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
14
Contact Tail Length:
0.134" (3.40mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.362" (9.20mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MCV
Positions Per Level:
14
Header Orientation:
Vertical
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1803549. It is a type of pcb header accessory. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust polybutylene terephthalate (pbt) housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 14. The typical tail length of the product is [Contact Tail Lenght]. 0.362" (9.20mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 8a. While 300 v is the typical voltage of the product. It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 250 v. The product is available in through hole configuration. It has a classic green colour. The product combicon mcv, is a highly preferred choice for users. It has 14 positions each level. The product has a vertical of a header orientation. The typical current includes 8 a. Moreover, the product is 0.150" (3.81mm). The product carries 1 levels. The product is designated with the ear99 code number.

pdf icon
Datasheet - 1803549(Technical Reference)
