Phoenix Contact 1844281
Product Information

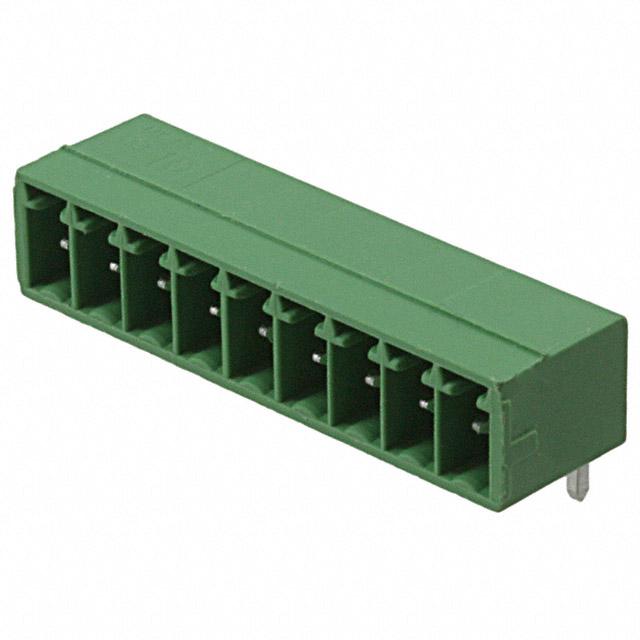

The 1844281 by Phoenix Contact is a meticulously created terminal block header featuring 9 positions with a 90-degree orientation. Boasting a 3.5mm pitch ensures compactness and efficient space utilisation on the board.
Number of Rows:
1
Pitch:
3.5mm
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
9
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.285" (7.25mm)
REACH Status:
REACH Unaffected
edacadModel:
1844281 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/349200
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Contact Tail Length:
0.134" (3.40mm)
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
13 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MC
Positions Per Level:
9
Header Orientation:
90°, Right Angle
Current - UL:
8 A
Wire Gauge or Range - AWG:
-
Pitch:
0.138" (3.50mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1844281 on website for other similar products.
We accept all major payment methods for all products including ET12237609. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1844281 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1844281. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1844281.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12237609 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12237609.
Yes. We ship 1844281 Internationally to many countries around the world.
The 1844281 is a terminal block header designed for efficient and secure electrical connections. Its 9 positions, 90-degree orientation, and 3.5mm pitch offer an ideal solution for connecting multiple wires in confined spaces. It is a preferred choice for engineers and designers pursuing efficient and secure terminal connections on PCBs and electrical devices.
A terminal block header is a connector utilised to facilitate the connection of wires or conductors in electrical circuits. It provides a secure and organised way to terminate and interconnect wires.
The 1844281 features 9 positions, allowing for connecting up to 9 wires or conductors. This multi-position design is beneficial when multiple connections need to be made in a single device or system.
The 90-degree orientation of the terminal block header allows wires to be connected at a right angle to the PCB (Printed Circuit Board). This configuration is functional when space is limited and a compact and neat wiring arrangement is required.
The 3.5mm pitch refers to the distance between adjacent terminal positions. A smaller pitch allows for higher-density connections on the PCB, making it suitable for space-constrained applications.
As a product of Phoenix Contact, the 1844281 terminal block header is manufactured to meet stringent quality standards, ensuring reliable and consistent performance in demanding environments.
Application Flexibility of Phoenix Contact 1844281:
The Phoenix Contact 1844281 finds applications in various industries and electronic devices, such as:
