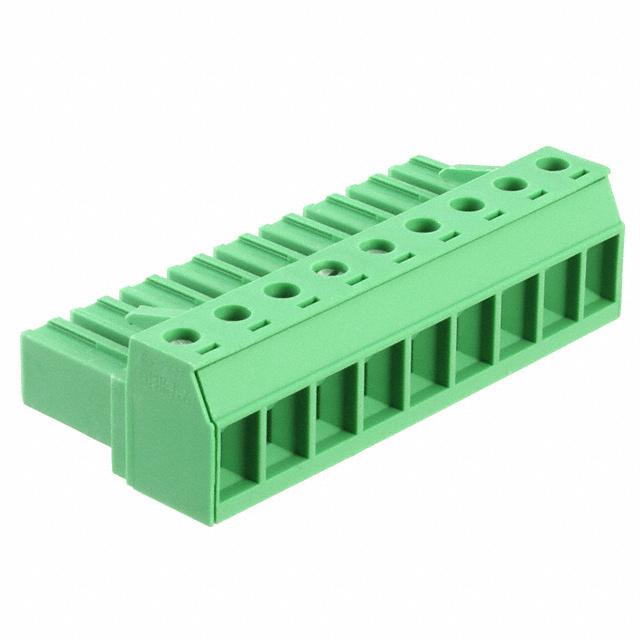

Phoenix Contact 1804975

1804975 Phoenix Contact
1804975
Phoenix Contact

Product Information

Series:
PC 4/ 9-ST-7.62
Current Rating:
20A
Mounting Type:
Plug-In
Voltage Rating:
630 V
Gender:
Female
Colour:
Green
Material:
Polyamide
Length:
68.56mm
Termination Method:
Screw
Width:
30.7mm
Depth:
18.1mm
Number of Rows:
1
Pitch:
7.62mm
Number of Contacts:
9
Type:
Plug Housing
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
9
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-4mm²
Plug Wire Entry:
180°
Insulation Height:
0.713" (18.10mm)
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20A
Number of Levels:
1
Wire Gauge or Range - AWG:
10-30 AWG
Voltage - UL:
600 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PC
Positions Per Level:
9
Packaging:
Bulk
Header Orientation:
-
Current - UL:
5 A
Pitch:
0.300" (7.62mm)
ECCN:
EAR99
Contact Material:
-
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1804975. The product pc 4/ 9-st-7.62, is a highly preferred choice for users. The product has a current rating of 20a. The product is available in plug-in configuration. Moreover, the product has a nominal 630 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. The product is made from highly stable and reliable polyamide. Its accurate length is 68.56mm. It allows screw termination method. Furthermore, the product is 30.7mm wide. The product comes in 18.1mm depth. It comes in 1 of rows. Moreover, the product is 7.62mm. The product contains 9 contacts. It comes in plug housing configuration. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 9. A 0.2-4mm² of wire gauge. It also a 180° plug wire entry. 0.713" (18.10mm) of insulation height. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 20a. The product carries 1 levels. While 10-30 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 6 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 1 kv. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pc, is a highly preferred choice for users. It has 9 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 5 a. Moreover, the product is 0.300" (7.62mm). The product is designated with the ear99 code number.
