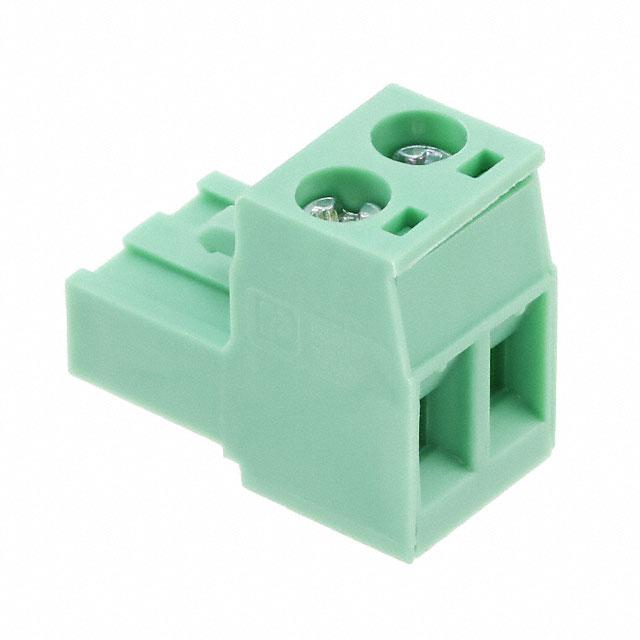

Phoenix Contact 5441980

5441980 Phoenix Contact
5441980
Phoenix Contact

Product Information

HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
2
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.4-0.5 Nm (3.5-4.4 Lb-In)
standardLeadTime:
16 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
BCP
Positions Per Level:
2
Header Orientation:
-
Current - UL:
15 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 5441980. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 2. A 0.2-2.5mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.4-0.5 nm (3.5-4.4 lb-in). It has a long 16 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product bcp, is a highly preferred choice for users. It has 2 positions each level. The typical current includes 15 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number.

pdf icon
5441980(Datasheets)
