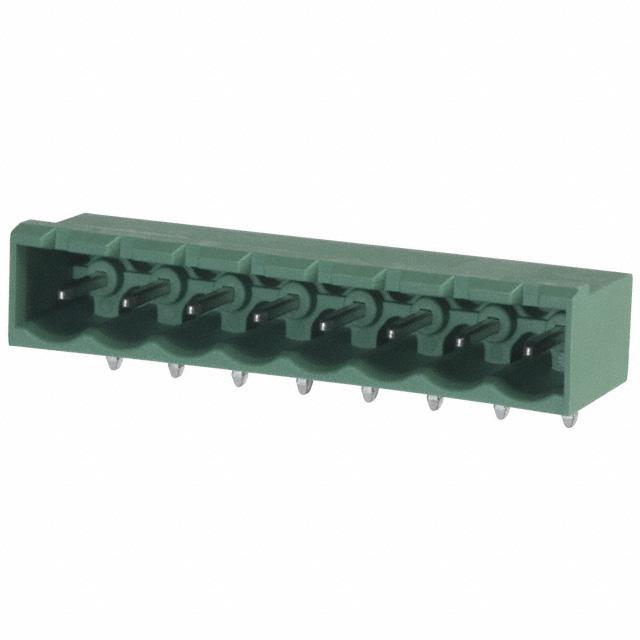

Phoenix Contact 1757527
Product Information
Current Rating:
12A
Voltage Rating:
320 V
Series:
COMBICON MSTBA
Body Orientation:
Right Angle
Termination Method:
Solder
Number of Rows:
1
Pitch:
5mm
Number of Contacts:
8
Type:
Header
CAD Drawing:
3D CAD Model
Contact Material:
Tin Plated
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
8
Contact Tail Length:
0.138" (3.50mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.339" (8.61mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MSTBA
Positions Per Level:
8
Header Orientation:
90°, Right Angle
Current - UL:
15 A
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1757527 on website for other similar products.
We accept all major payment methods for all products including ET12063725. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1757527 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1757527. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1757527.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12063725 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12063725.
Yes. We ship 1757527 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1757527. The product has a current rating of 12a. Moreover, the product has a nominal 320 v voltage rating. The product combicon mstba, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It comes in 1 of rows. Moreover, the product is 5mm. The product contains 8 contacts. It comes in header configuration. It has 3d cad model CAD drawing . The product is made from sturdy tin plated materials. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Moreover, it has solder terminal style. The product also features robust polyamide (pa), nylon housing material. It comes in header, male pins, shrouded (4 side) configuration. The product carries possible position value of 8. The typical tail length of the product is [Contact Tail Lenght]. 0.339" (8.61mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 300 v is the typical voltage of the product. It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 400 v. The product is available in through hole configuration. It has a classic green colour. It has 8 positions each level. The product has a 90°, right angle of a header orientation. The typical current includes 15 a. Moreover, the product is 0.197" (5.00mm). The product carries 1 levels. The product is designated with the ear99 code number.
