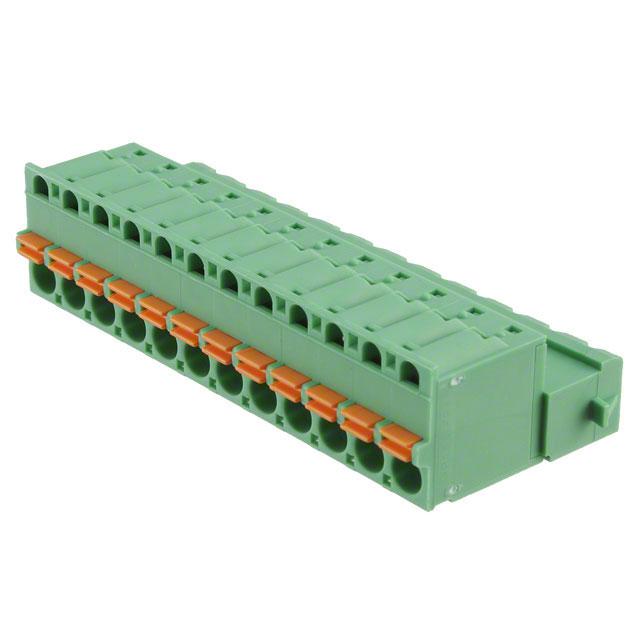

Phoenix Contact 1925964
Product Information
Current Rating:
12A
Mounting Type:
Cable Mount
Voltage Rating:
630 V
Series:
FKIC 2.5/12-ST-5.08-RN
Colour:
Green
Material:
Polyamide, Tin
Pluggable Terminal Block Type:
Inverted Plug
Termination Method:
Spring Cage
Number of Rows:
1
Pitch:
5.08mm
Number of Contacts:
12
Body Orientation:
Straight
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm
Type:
Plug, Male Pins
Number of Positions:
12
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Locking Ramp
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON FKIC
Positions Per Level:
12
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1925964 on website for other similar products.
We accept all major payment methods for all products including ET11975550. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1925964 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1925964. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1925964.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11975550 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11975550.
Yes. We ship 1925964 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1925964. The product has a current rating of 12a. The product is available in cable mount configuration. Moreover, the product has a nominal 630 v voltage rating. The product fkic 2.5/12-st-5.08-rn, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide, tin. It allows spring cage termination method. It comes in 1 of rows. Moreover, the product is 5.08mm. The product contains 12 contacts. It has straight body orientation. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screwless - push-in spring terminal style. The product also features robust polyamide (pa), nylon housing material. The typical length of the wire strip is 10mm. It comes in plug, male pins configuration. The product carries possible position value of 12. A 0.2-2.5mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 12a. While 12-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 10 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include locking ramp. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon fkic, is a highly preferred choice for users. It has 12 positions each level. The typical current includes 10 a. Moreover, the product is 0.200" (5.08mm). The product carries 1 levels. The product is designated with the ear99 code number.
