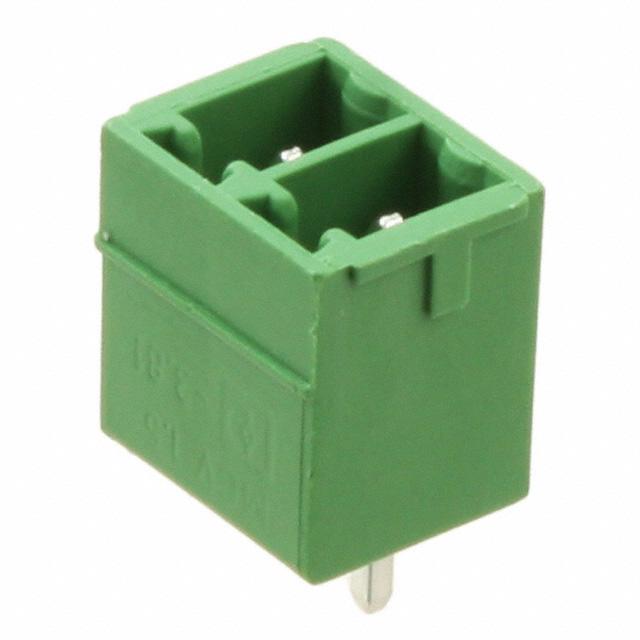

Phoenix Contact 1803426 Terminal Block Header, 2 Way, 8A, Green

1803426 Phoenix Contact Terminal Block Header, 2 Way, 8A, Green
1803426
1803426
ET11923502
ET11923502
Headers, Plugs and Sockets
1803426 Phoenix Contact Terminal Block Header, 2 Way, 8A, Green
Phoenix Contact

Product Information

Housing Material:
Polybutylene Terephthalate
Number of Contacts:
2
Orientation:
Straight
Wire Connection Method:
Solder
Minimum Wire Size mm?:
1.5mm?
Series:
MCV 1.5/2-G-3.81
Colour:
Green
Minimum Wire Size AWG:
16AWG
Length:
7.25mm
Current:
8A
Width:
9.01mm
Depth:
12.6mm
Number of Rows:
1
Standards/Approvals:
RoHS
Voltage:
300V
Pitch:
3.81mm
Maximum Wire Size AWG:
16AWG
Product Type:
Pluggable Terminal Block
Connector Gender:
Male
Maximum Wire Size mm?:
1.5mm?
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (4 Side)
Number of Positions:
2
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.362" (9.20mm)
REACH Status:
REACH Unaffected
edacadModel:
1803426 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/260589
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.134" (3.40mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
4 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
250 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MCV
Positions Per Level:
2
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
8 A
Pitch:
0.150" (3.81mm)
Contact Material:
-
ECCN:
EAR99
194 - In Stock

Ships in 5-7 business days

Quantity
Unit Price (ex VAT)
Price
1
£ 83.93
£ 83.93
Mfr Part No:
1803426
Seller:
MM Engineering Services Ltd
Origin:
Warranty:
Manufacturer
Data Code:
ET11923502
Order Today!
From: United Kingdom
Est Ship Date: 05 Jun, 2026
Est Fastest Delivery: 09 Jun, 2026
warehouse-1
933 - In Stock

Ships in 5-7 business days

Each (In a Pack of 5)

Quantity
Unit Price (ex VAT)
Price
5
£ 0.47
£ 2.35
125
£ 0.42
£ 52.50
500
£ 0.36
£ 180.00
Mfr Part No:
1803426
Seller:
Phoenix Contact (warehouse-1)
Origin:
Warranty:
Manufacturer
Data Code:
ET11923502
Order Today!
From: United Kingdom
Est Ship Date: 05 Jun, 2026
Est Fastest Delivery: 09 Jun, 2026

The Phoenix Contact 1803426 is a premium vertical PCB header designed for reliable signal transmission. This component features a compact 3.81 mm pitch to save valuable board space. Its vertical orientation allows for efficient multi-row arrangements in complex designs. The housing is crafted from durable green PBT material for industrial resilience. It utilises a well-known mounting principle to ensure compatibility across worldwide applications. This header provides a secure and stable interface for pluggable terminal blocks.

Product Advanced Features & Technical Specifications

  • Pitch Spacing: Compact 3.81 mm pitch for high-density layouts.
  • Electrical Ratings: Rated for 8 A nominal current and 160 V (III/2).
  • Mounting Style: Standard wave soldering through-hole mounting.
  • Material Composition: Insulating PBT housing with tin-plated copper alloy contacts.
  • Dimensions: Width: 9.01 mm, Height: 12.6 mm, Length: 7.25 mm.
  • Flammability Rating: UL 94 V-0 certified for superior fire safety.
  • Mechanical Life: Guaranteed for at least 25 mating cycles.
  • Environmental Range: Stable operation from -40 °C to 100 °C.

Why Buy This Product - Benefits

This Phoenix Contact 1803426 green terminal block header offers maximum design flexibility for modern electronics. The vertical connection simplifies complex PCB layouts and arrangements.

  • Enables worldwide device use.
  • Protects pins with shrouded housing.
  • Ensures corrosion-resistant connections.

pdf icon
Datasheet 1803426(Technical Reference)
pdf icon
UL E60425(Technical Reference)
pdf icon
Line Drawing - 1803426(Technical Reference)
pdf icon
1803426(Datasheets)
pdf icon
Multiple Devices 01/Jul/2013(PCN Packaging)

Reviews

  • Jeff Powter
    19 Aug 2024

    The 1803426 Headers, Plugs, and Sockets from EnrgTech met all my expectations. The connectors are durable and fit well into my project. The smooth delivery and responsive customer care team made the experience even better. EnrgTech’s professional sales team ensured that everything went off without a hitch. I highly recommend visiting the EnrgTech website for this excellent product.

FAQs

Yes. We ship 1803426 Internationally to many countries around the world.
Yes. You can also search 1803426 on website for other similar products.
We accept all major payment methods for all products including ET11923502. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11923502 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11923502.
You can order Phoenix Contact brand products with 1803426 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1803426 Terminal Block Header, 2 Way, 8A, Green. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1803426 Terminal Block Header, 2 Way, 8A, Green.
