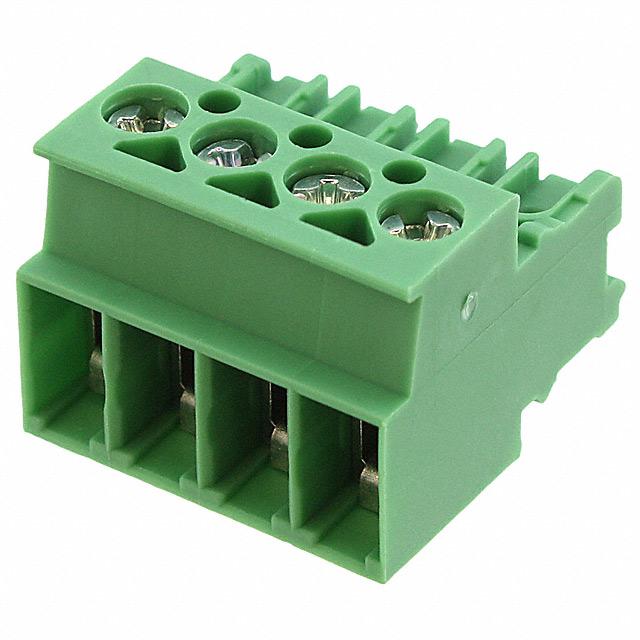

Phoenix Contact 1704181
Product Information
Material:
Polyamide, Tin
Current Rating:
13.5A
Voltage Rating:
630 V
Gender:
Female
Colour:
Green
Pitch:
5mm
Termination Method:
Screw
Series:
COMBICON PT
Number of Contacts:
4
Type:
Plug
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
8mm
Type:
Plug, Female Sockets
Number of Positions:
4
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.5-4mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
13.5A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
0.45-0.5 Nm (3.9-4.4 Lb-In)
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PT
Positions Per Level:
4
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.197" (5.00mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1704181 on website for other similar products.
We accept all major payment methods for all products including ET11731184. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1704181 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1704181. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1704181.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11731184 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11731184.
Yes. We ship 1704181 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1704181. The product is made from highly stable and reliable polyamide, tin. The product has a current rating of 13.5a. Moreover, the product has a nominal 630 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. Moreover, the product is 5mm. It allows screw termination method. The product combicon pt, is a highly preferred choice for users. The product contains 4 contacts. It comes in plug configuration. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 8mm. It comes in plug, female sockets configuration. The product carries possible position value of 4. A 0.5-4mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 13.5a. While 12-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.45-0.5 nm (3.9-4.4 lb-in). The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. It has 4 positions each level. The typical current includes 10 a. Moreover, the product is 0.197" (5.00mm). The product carries 1 levels. The product is designated with the ear99 code number.
