HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Operating Temperature:
-
Type:

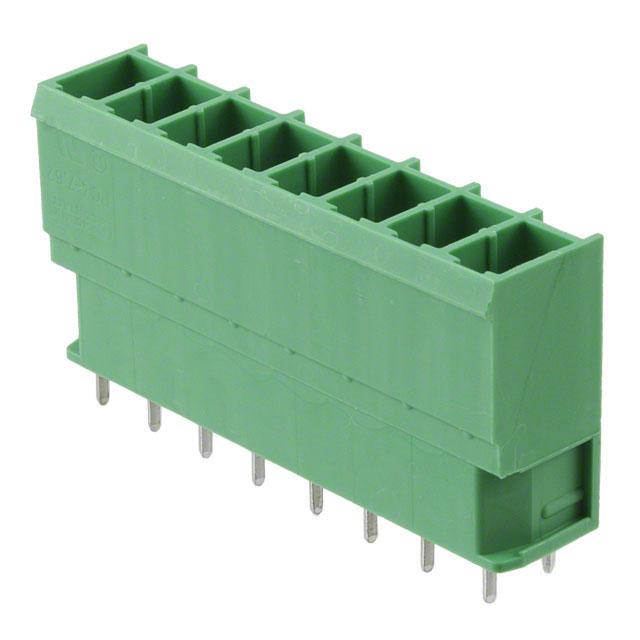

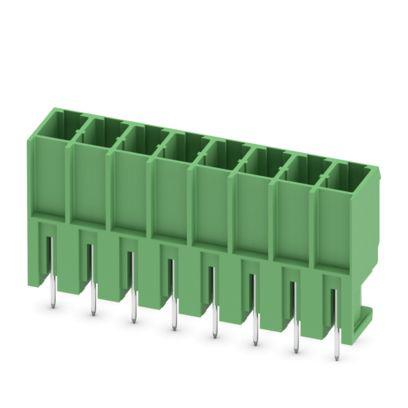

Header, Male Pins, Shrouded (4 Side)
Number of Positions:
8
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
REACH Status:
REACH Unaffected
edacadModel:
1804742 Models
edacadModelUrl:
/en/models/2528751
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20A
Number of Levels:
1
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
standardLeadTime:
10 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON PCV
Positions Per Level:
8
Packaging:
Bulk
Header Orientation:
Vertical
Current - UL:
20 A
Pitch:
0.300" (7.62mm)
ECCN:
EAR99
Connector System:
COMBICON PC 4 hybrid
Tail Pin Length:
5mm
Number of Contacts:
8
Termination Type:
Solder
Housing Material:
Polyamide
Shrouded/Unshrouded:
Shrouded
Series:
PCV 4/..-G
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
7.62mm
Current:
2A
Number of Rows:
1
Standards/Approvals:
BV 35433/C0, CSA 13631, cULus E60425-19920722, DNV GL TAE00001EZ, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 61984, ISO 6988:1985-02, LR LR21308805TA
Voltage:
63 V
Contact Plating:
Tin Plated
Pitch:
7.62mm
Mating Pin Length:
5mm
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Solder
