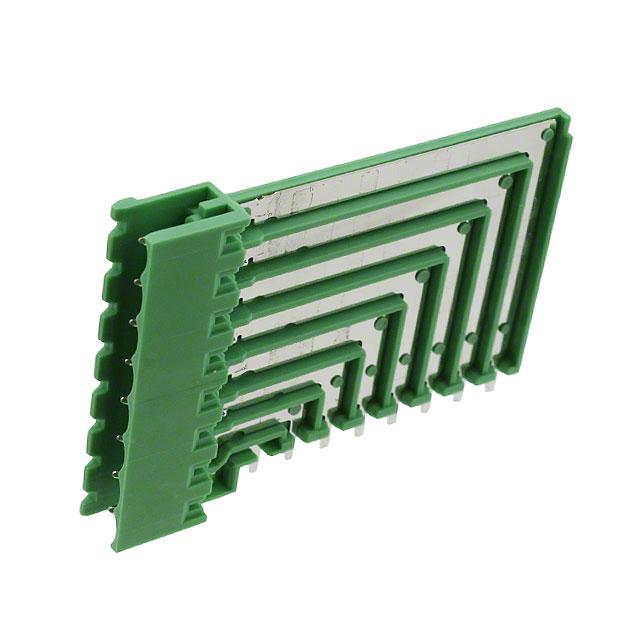

Connector System:
COMBICON MSTB 2.5
Number of Contacts:
8
Contact Plating:
Tin
Housing Material:
Polyamide
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
5.08mm
Current:
8A
Number of Rows:
1
Standards/Approvals:
CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Zeichengenehmigung
Voltage:
320 V
Pitch:
5.08mm
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Wave Soldering Mount
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Termination Style:
Solder
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-
Type:
Header, Male Pins, Shrouded (2 Side)
Number of Positions:
8
Contact Tail Length:
0.126" (3.20mm)
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
1.600" (40.64mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
8A
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MSTBO
Positions Per Level:
8
Header Orientation:
90°, Right Angle, Vertical
Current - UL:
8 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
