HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Termination Style:
Screwless - Push-In Spring
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
10mm

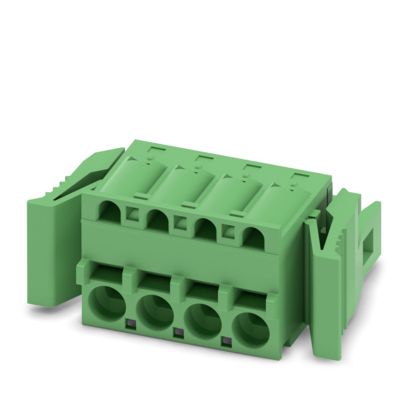

Type:
Plug, Female Sockets
Number of Positions:
4
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-26 AWG
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
6 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Latch Lock, Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON FKCS
Positions Per Level:
4
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Housing Material:
Polyamide
Number of Contacts:
4
Series:
FKCS
Colour:
Green
Length:
25.1mm
Current:
12A
Width:
28.66 mm
Depth:
15mm
Number of Rows:
1
Standards/Approvals:
IEC 61984, IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60068-2-70:1995-12, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, EN ISO 22479:2022-06, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, UL 94 V0, CSA Approval ID: 13631-2585951, cULus Recognised Approval ID: E60425-19931011, VDE approval of drawings Approval ID: 40050694, EU RoHS
Voltage:
320 V
Termination Type:
Push-in Spring
Pitch:
5.08mm
Product Type:
PCB Connector
Connector Gender:
Female
