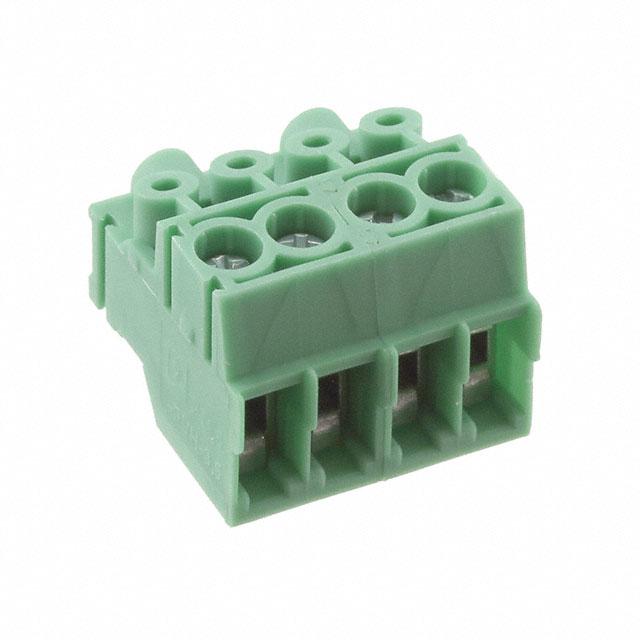

Phoenix Contact 1984183
Product Information
Current Rating:
6A
Voltage Rating:
400 V
Series:
PT 1.5/ 4-PVH-3.5-A
Colour:
Green
Material:
Polyamide, Tin
Pluggable Terminal Block Type:
Plug
Termination Method:
Screw
Pitch:
3.5mm
Number of Contacts:
4
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M2
Wire Strip Length:
5mm
Type:
Plug for Unshrouded Header
Number of Positions:
4
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-1.5mm²
Plug Wire Entry:
-
Insulation Height:
0.433" (11.00mm)
REACH Status:
REACH Affected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
6A
Wire Gauge or Range - AWG:
16-26 AWG
Voltage - UL:
300 V
Torque - Screw:
0.25 Nm (2.2 Lb-In)
standardLeadTime:
8 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON PT
Positions Per Level:
4
Header Orientation:
-
Current - UL:
10 A
Pitch:
0.138" (3.50mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1984183 on website for other similar products.
We accept all major payment methods for all products including ET11392294. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1984183 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Plugs and Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1984183. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1984183.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11392294 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11392294.
Yes. We ship 1984183 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1984183. The product has a current rating of 6a. Moreover, the product has a nominal 400 v voltage rating. The product pt 1.5/ 4-pvh-3.5-a, is a highly preferred choice for users. It has a decent green colour. The product is made from highly stable and reliable polyamide, tin. It allows screw termination method. Moreover, the product is 3.5mm. The product contains 4 contacts. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m2. The typical length of the wire strip is 5mm. It comes in plug for unshrouded header configuration. The product carries possible position value of 4. A 0.2-1.5mm² of wire gauge. 0.433" (11.00mm) of insulation height. In addition, it is reach affected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 6a. While 16-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.25 nm (2.2 lb-in). It has a long 8 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 400 v. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon pt, is a highly preferred choice for users. It has 4 positions each level. The typical current includes 10 a. Moreover, the product is 0.138" (3.50mm). The product carries 1 levels. The product is designated with the ear99 code number.
