Housing Material:
Polyamide
Number of Contacts:
20
Series:
MVSTBR 2
Colour:
Green
Length:
12.5mm
Current:
12A
Width:
101.6 mm
Depth:
26mm
Number of Rows:
1
Standards/Approvals:
IEC 60999-1:1999-11, IEC 60512-13-2:2006-02, IEC 60512-13-5:2006-02, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60068-2-70:1995-12, IEC 60068-2-6:2007-12, IEC 60512-9-1:2010-03, ISO 6988:1985-02, EN 60695-2-12, EN 60695-2-13, EN 60695-10-2, UL 94 V0, cULus Recognised (E60425-19931011), VDE (40050694), EU RoHS, CHINA RoHS, EU REACH
Voltage:
320 V
Termination Type:
Screw
Pitch:
5.08mm

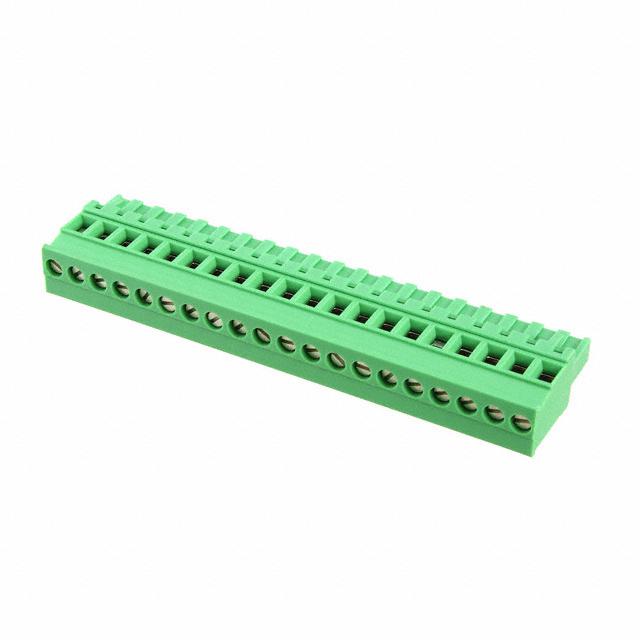

Product Type:
PCB Connector
Connector Gender:
Female
Mount Type:
Screw
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
20
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
90°
Insulation Height:
1.024" (26.01mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
12A
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
9 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MVSTBR
Positions Per Level:
20
Header Orientation:
-
Current - UL:
15 A
Pitch:
0.200" (5.08mm)
Number of Levels:
1
Contact Material:
-
ECCN:
EAR99
