Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
3.23mm
Number of Contacts:
4
Orientation:
Straight
Housing Material:
Polybutylene Terephthalate
Shrouded/Unshrouded:
Shrouded
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
5.08mm
Current:
10A
Number of Rows:
2
Standards/Approvals:
CSA, cULus, DNV GL, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, IEC 61984, UL 94 V0, VDE
Voltage:
32 V
Contact Plating:
Tin Plated
Pitch:
5.08mm
Mating Pin Length:
3.23mm
Termination Type:
Solder
Product Type:
PCB Header
Maximum Operating Temperature:
100°C
Minimum Operating Temperature:
-40°C
Mount Type:
Solder
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder
Housing Material:
Polybutylene Terephthalate (PBT)
Operating Temperature:
-
Screw Size:
-
Wire Strip Length:
-

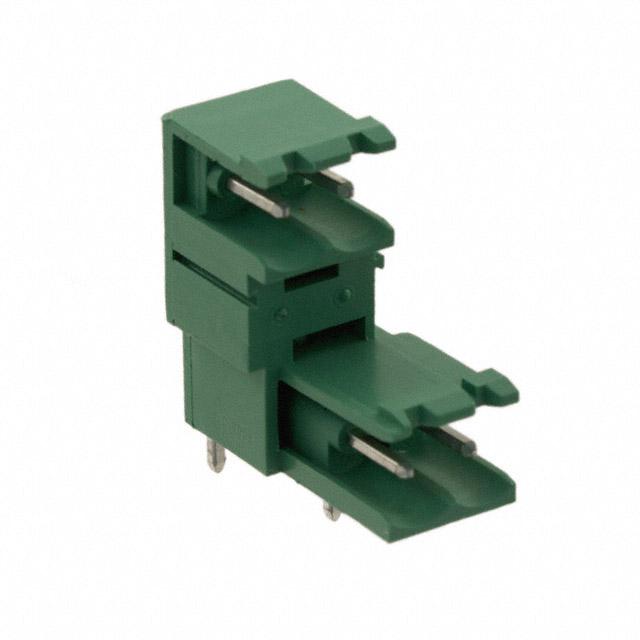

Type:
Header, Male Pins, Shrouded (2 Side)
Number of Positions:
4
Wire Gauge or Range - mm²:
-
Plug Wire Entry:
-
Insulation Height:
0.933" (23.70mm)
REACH Status:
REACH Unaffected
edacadModel:
1762062 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/267570
Manufacturer:
Phoenix Contact
Contact Tail Length:
0.126" (3.20mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
10A
Number of Levels:
2
Wire Gauge or Range - AWG:
-
Voltage - UL:
300 V
Torque - Screw:
-
standardLeadTime:
11 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
400 V
Ingress Protection:
-
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Green
Series:
COMBICON MDSTB
Positions Per Level:
2
Packaging:
Bulk
Header Orientation:
90°, Right Angle
Current - UL:
15 A
Pitch:
0.200" (5.08mm)
Contact Material:
-
ECCN:
EAR99
